A Review of The Impact of Deep Learning on the Analysis of Cosmological Galaxy Surveys

François Lanusse

in collaboration with Marc Huertas-Company

slides at eiffl.github.io/talks/CoPhy2023

The Deep Learning Boom in Astrophysics

astro-ph abstracts mentioning Deep Learning, CNN, or Neural Networks

Will AI Revolutionize the Scientific Analysis of Cosmological Surveys?

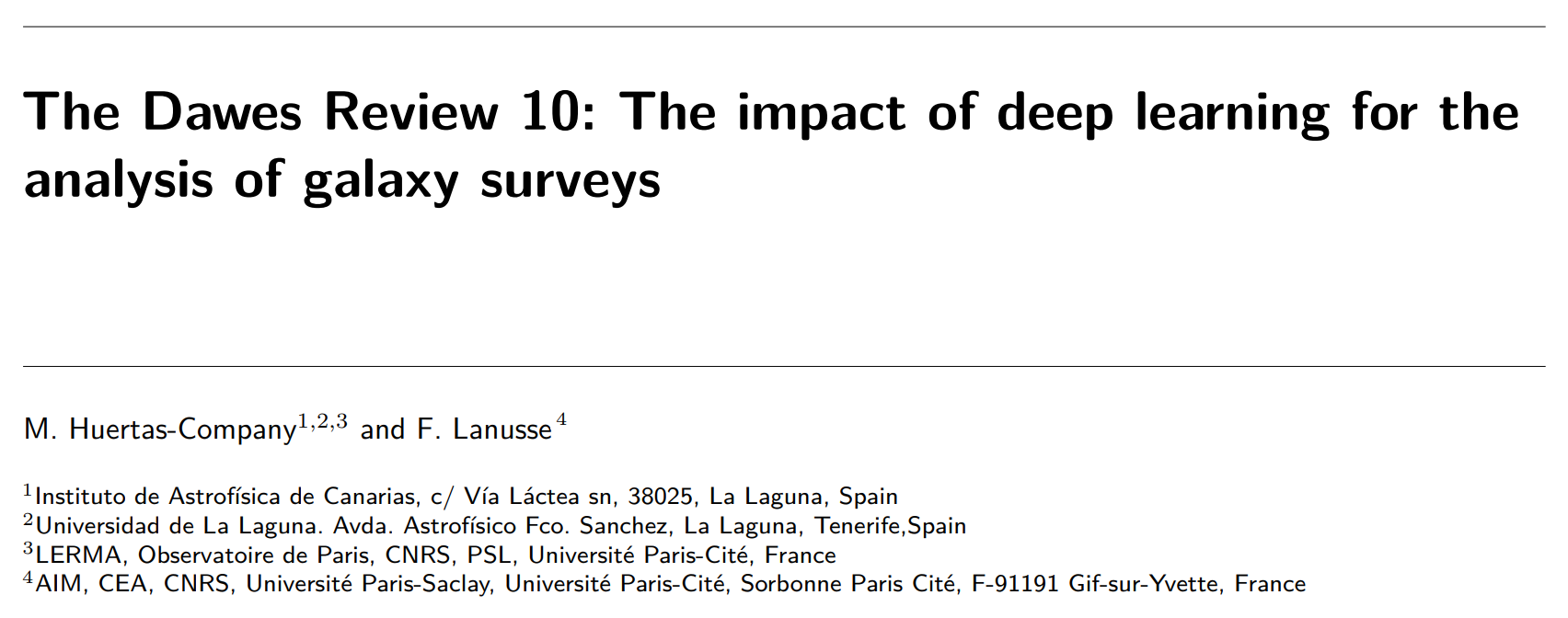

Review of the impact of Deep Learning in Galaxy Survey Science


outline of this talk

My goal for today: tour of Deep Learning applications relevant to cosmological physical inference.

  • Interpreting Increasingly Complex Images

  • Accelerating Numerical Simulations

  • Simulation-Based Cosmological Inference

Interpreting Increasingly Complex Data

Dieleman+15, Huertas-Company+15, Aniyan+17, Charnock+17, Gieseke+17, Jacobs+17, Petrillo+17, Schawinski+17, Alhassan+18, Dominguez-Sanchez+18, George+18, Hinners+18, Lukic+18, Moss+18, Razzano+18, Schaefer+18, Allen+19, Burke+19, Carrasco-Davis+19, Chatterjee+19, Davies+19, Dominguez-Sanchez+19, Fusse+19, Glaser+19, Ishida+19, Jacobs+19, Katebi+19, Lanusse+19Liu+19, Lukic+19, Metcalf+19, Muthukrishna+19, Petrillo+19, Reiman+19, Boucaud+20, Chiani+20, Ghosh+20, Gomez+20, Hausen+20, Hlozek+20, Hosseinzadeh+20. Huang+20, Li+20, Moller+20, Paillassa+20, Tadaki+20, Vargas dos Santos+20, Walmsley+20, Wei+20, Allam+21, Arcelin+21, Becker+21, Bretonniere+21, Burhanudin+21, Davison+21, Donoso-Oliva+21, Jia+21, Lauritsen+21, Ono+21, Ruan+21, Sadegho+21, Tang+21, Tanoglidis+21, Vojtekova+21, Dhar+22Hausen+22, Orwat+22, Pimentel+22, Rezaei+22, Samudre+22, Shen+22, Walmsley+22
Credit: NAOJ

Detection and Classification of Astronomical Objects

Credit: NAOJ

A perfect task for Deep Learning!

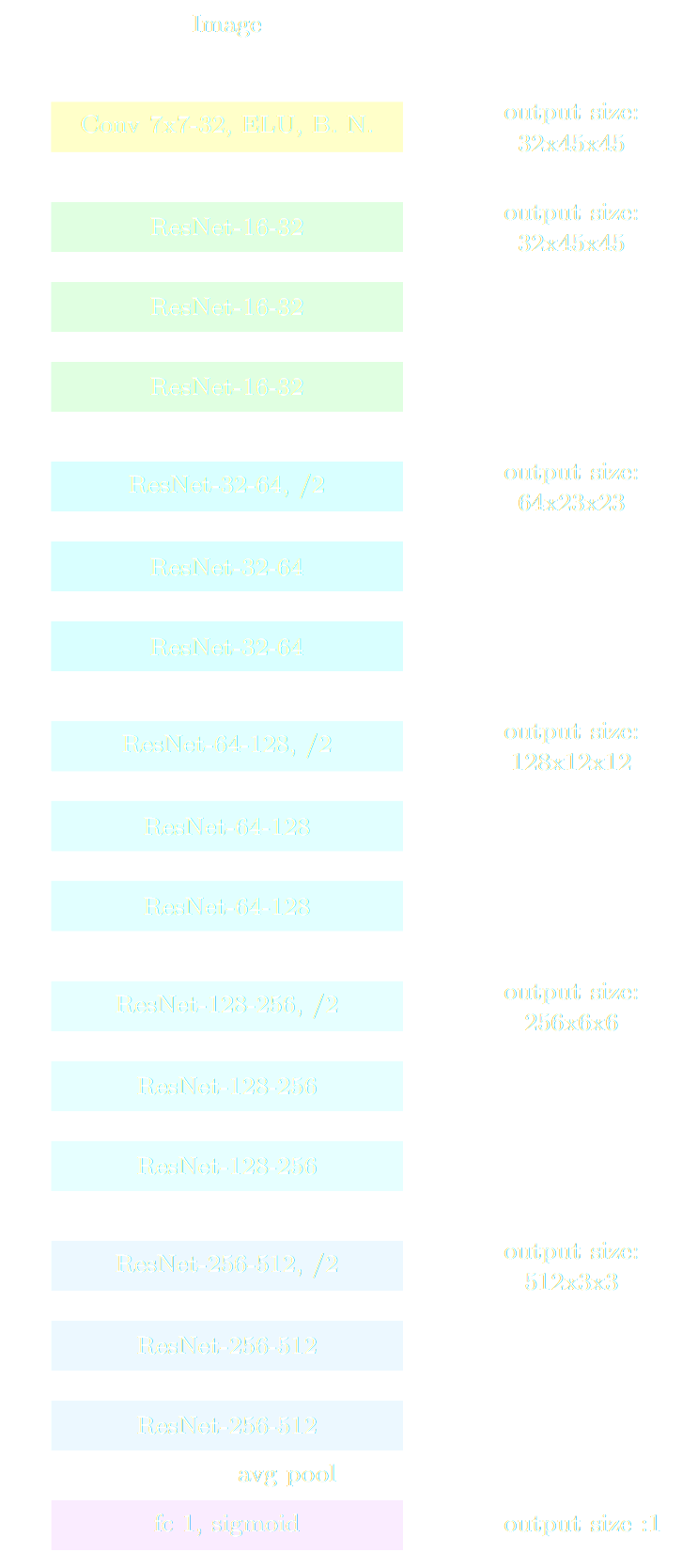

Lanusse, Ma, Li, Collett, Li, Ravanbakhsh, Mandelbaum, Poczos (2017)

Simulated gravitational lenses used for training

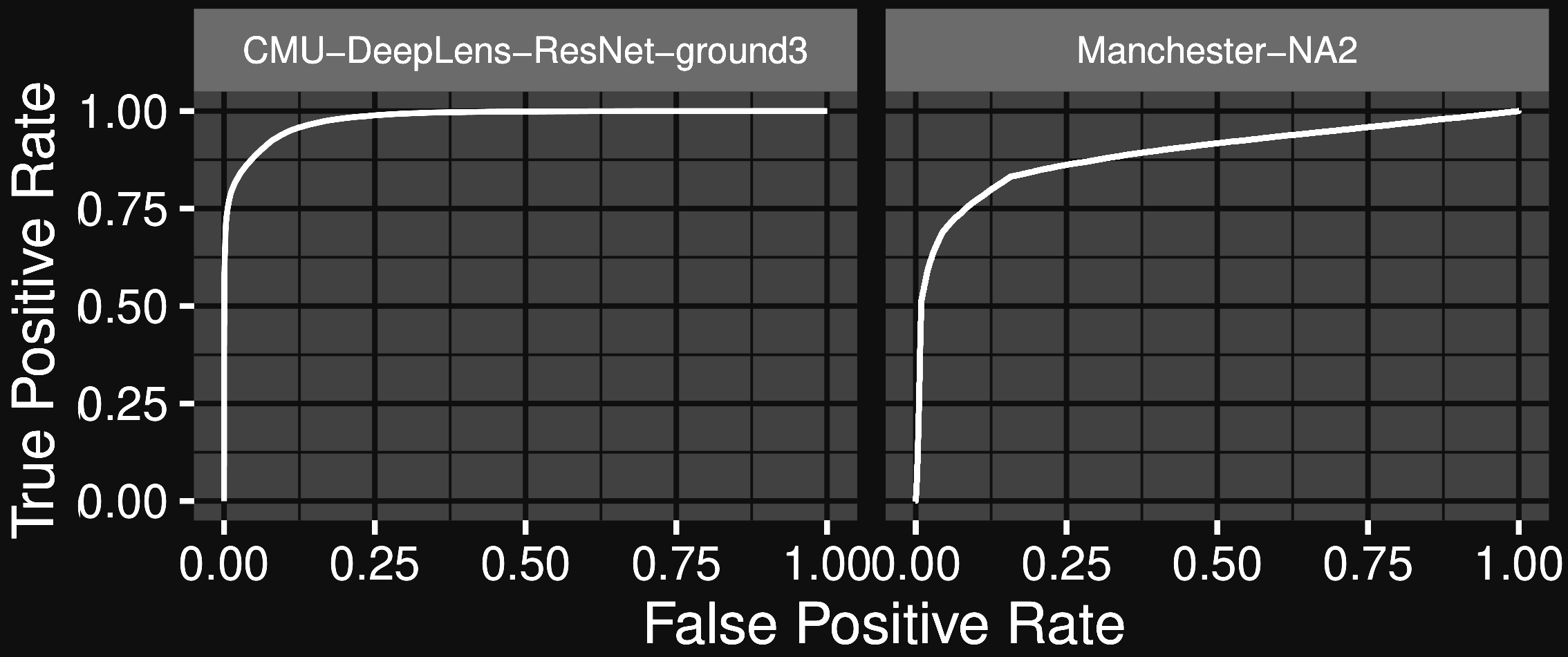

Better accuracy than human visual inspection!
Metcalf, et al. (2018)
Strong lens candidates in the DESI DECam Legacy Survey
Huang et al. (2019)

Inference at the Image Level

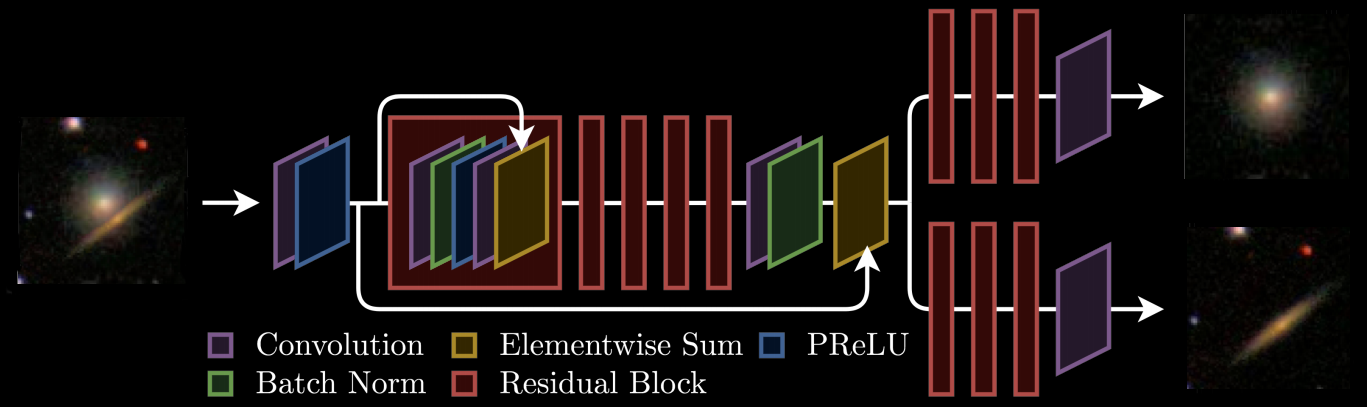

Reiman & Göhre (2018)

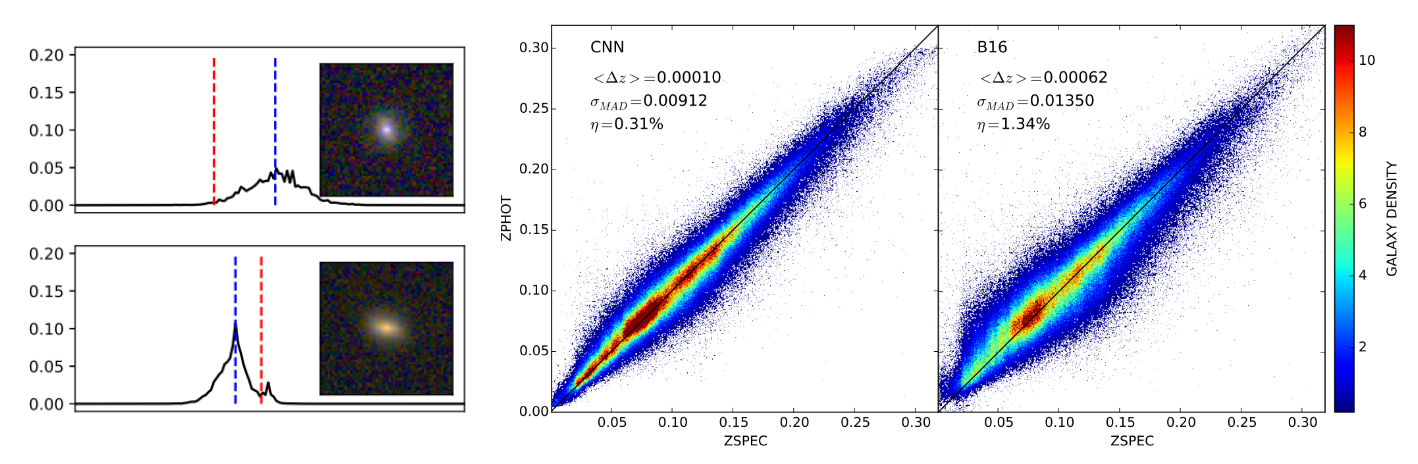

  • Inferring photometric redshifts from images
    Pasquet, Bertin, Treyer, Arnouts, Fouchez (2019)
  • Inferring surface brightness profile parameters
    Tucillo, Huertas-Company, et al. (2017)
  • Estimated Sersic index by CNN before adaptation (left), after adaptation (right)


    Is Deep Learning Really Changing the Game in Interpreting Survey Data?

    • For Detection, Classification, Cleaning tasks: Yes!
      $\Longrightarrow$ As long as we don't need to understand precisely the model response/selection function.

    • For infering physical properties needed in downstream analysis: Not really...
      • In general the exact response is not known, and very non-linear.

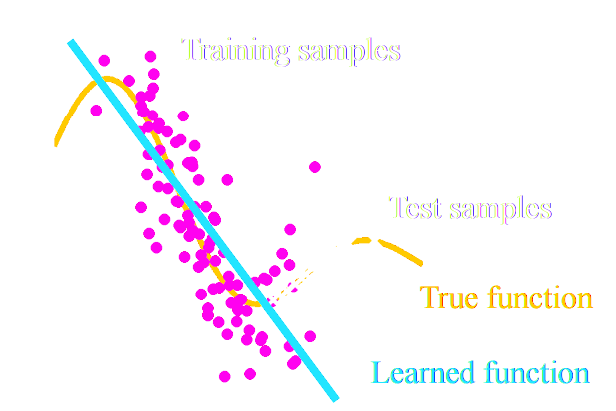

      • Not addressing the core question of representativeness of training data.

    Accelerating Cosmological Simulations with Deep Learning

    Rodriguez+19, Modi+18, Berger+18, He+18, Zhang+19, Troster+19, Zamudio- Fernandez+19, Perraudin+19, Charnock+19, List+19, Giusarma+19, Bernardini+19, Chardin+19, Mustafa+19, Ramanah+20, Tamosiunas+20, Feder+20, Moster+20, Thiele+20, Wadekar+20, Dai+20, Li+20, Lucie-Smith+20, Kasmanoff+20, Ni+21, Rouhiainen+21, Harrington+21, Horowitz+21, Horowitz+21, Bernardini+21, Schaurecker+21, Etezad-Razavi+21, Curtis+21

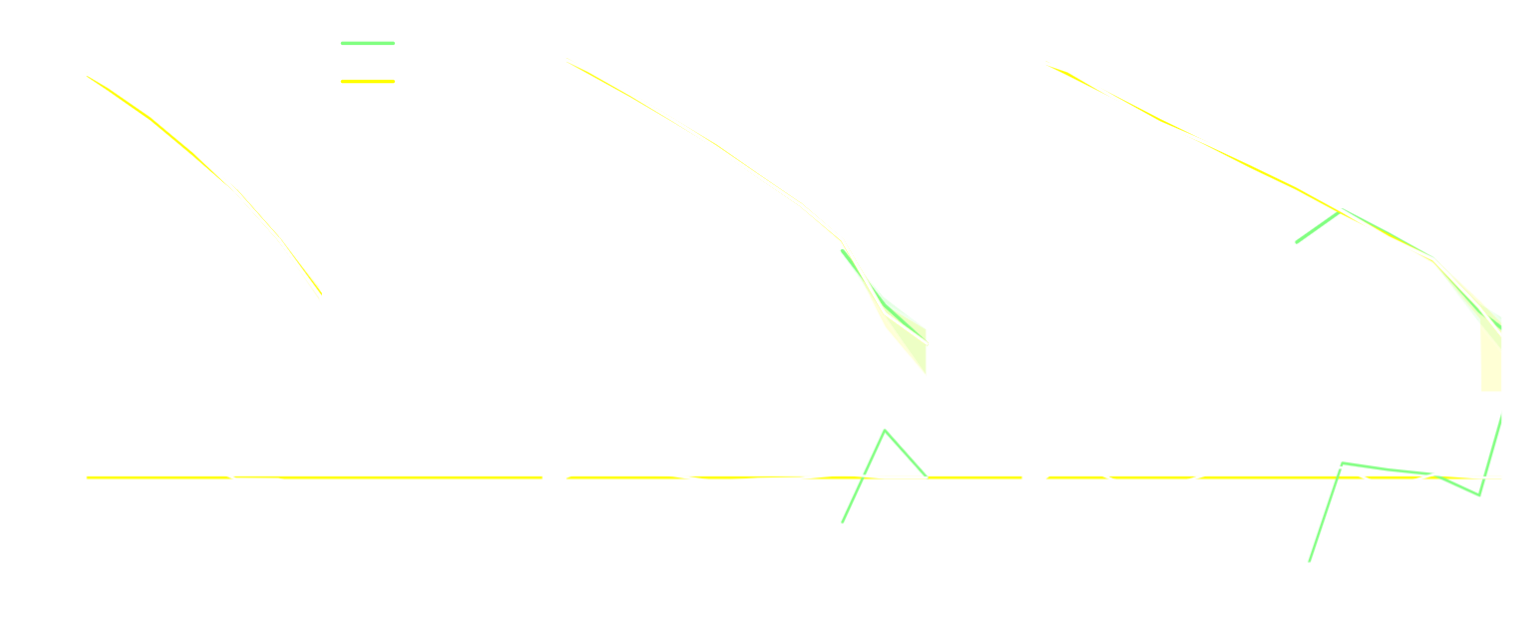

    AI-assisted superresolution cosmological simulations

    Li, Ni, Croft, Di Matteo, Bird, Feng (2021)

    x8 super-resolution

    • Inputs low resolution particle displacement field, outputs samples from a distribution $p_\theta(x_{SR} | x_{LR})$

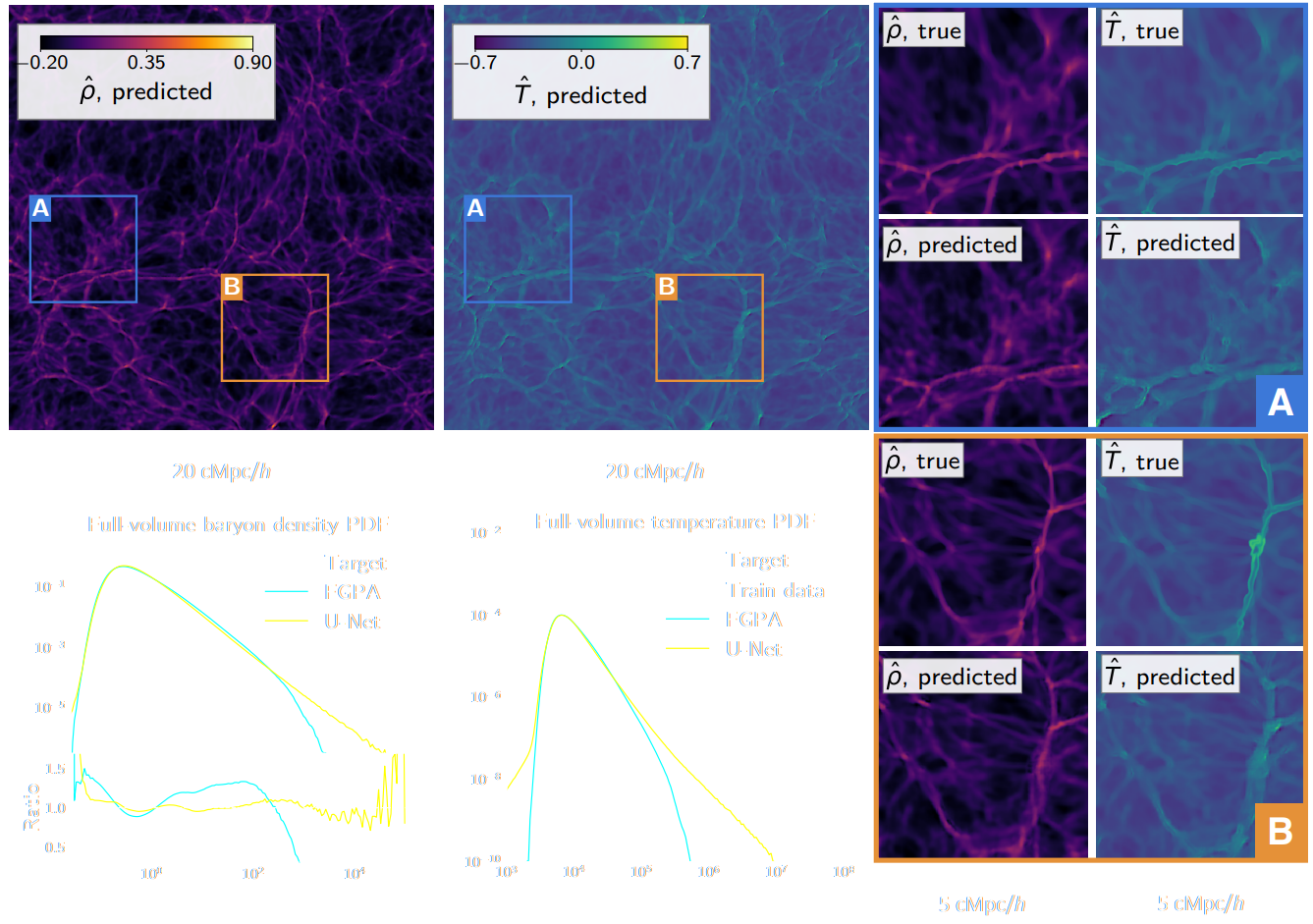

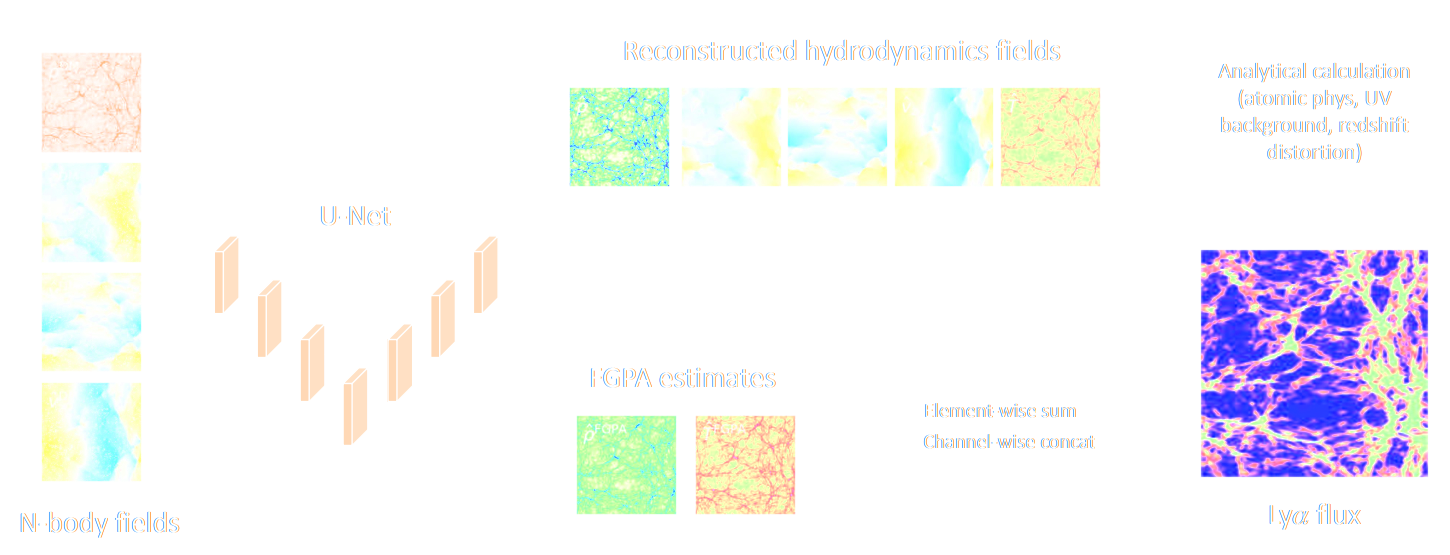

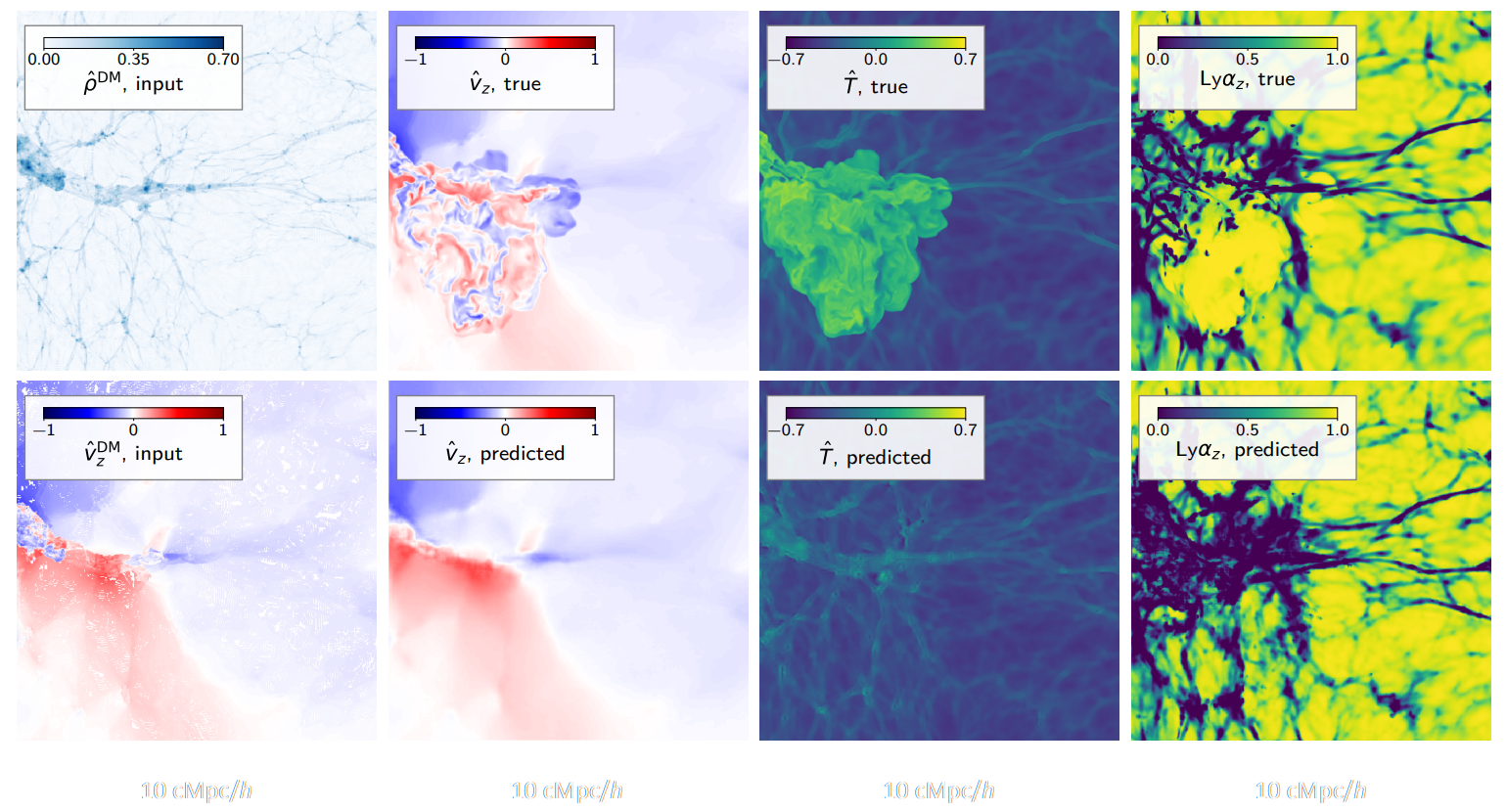

    Fast, high-fidelity Lyman α forests with CNNs

    Harrington, Mustafa, Dornfest, Horowitz, Lukić (2021)

    are these Deep Learning models a real game-changer?

    The Limitations of Black-Box Large Deep Learning Approaches
    • There is a risk that a large Deep Learning model can silently fail.
      $\Rightarrow$ How can we build confidence in the output of the neural network?

    • Training these models can require a very large number of simulations.
      $\Rightarrow$ Do they bring a net computational benefit?
      • In case of the super-resolution model of Li et al. (2021), only 16 full-resolution $512^3$ N-body were necessary.

    • In many cases, the accuracy (not the quantity) of simulations will be the main bottleneck.
      $\Rightarrow$ What new science are these deep learning models enabling?
      • In the case of cosmological SBI, they do not help us resolve the uncertainty on the simulation model.

    (Harrington et al. 2021)
    What Would be Desirable Properties of robust ML-based Emulation Methods?
    • Make use of known symmetries and physical constraints.

    • Modeling residuals to an approximate physical model

    • Minimally parametric
      • Can be trained with a very small number of simulations
      • Could potentially be inferred from data!

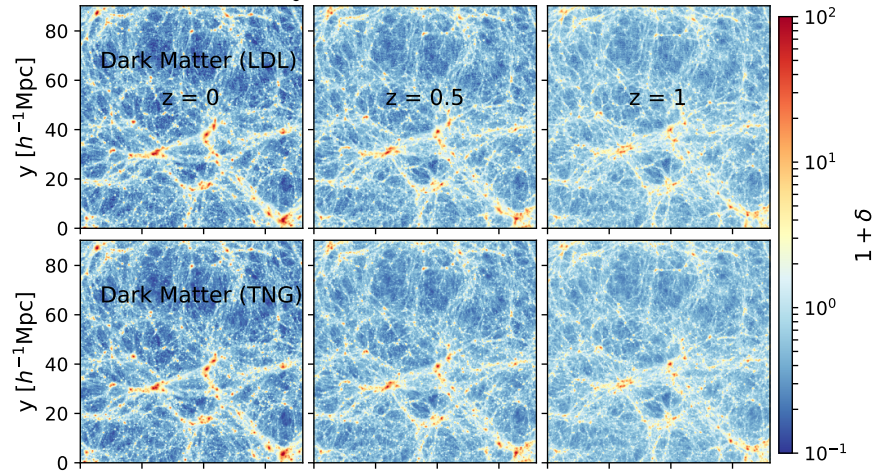

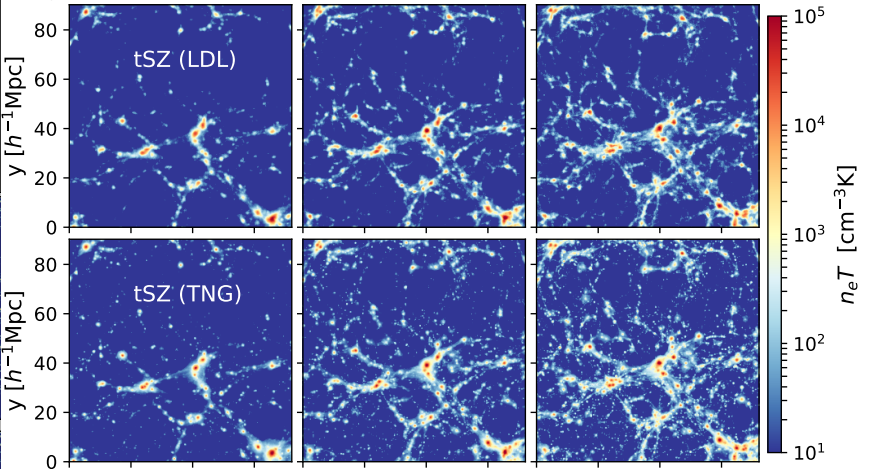

    Learning effective physical laws for generating cosmological hydrodynamics with Lagrangian Deep Learning

    Dai & Seljak (2021)
    • The Lagrangian Deep Learning approach:
      • Run an approximate Particle-Mesh DM simulation (about 10 steps)
      • Introduce a displacement $\mathbf{S}$ of particles: \begin{equation} \mathbf{S}=-\alpha\nabla \hat{O}_{G} f(\delta) \end{equation} where $\hat{O}_{g}$ is a parametric Fourier-space filter, $f$ is a parametric function of $\delta$.
        $\Rightarrow$ Respects translational and rotational symmetries.
      • Apply a non-linear function on the resulting density field $\delta^\prime$: $$F(x) = \mathrm{ReLu}(b_1 f(\delta^\prime) - b_0)$$
    $\Longrightarrow$ Only need to fit ~10 parameters to reproduce a desired field from an hydrodynamical field.


    • Deep Learning may allow us to scale up existing simulation suites (with caveats), but it is not replacing simulation codes.

    • One exciting prospect rarely explored so far in astrophysics is using Deep Learning to accelerate the N-body/hydro solver.

    https://sites.google.com/view/meshgraphnets (Pfaff et al. 2021)

    Simulation-Based Cosmological Inference

    Ravanbakhsh+17, Brehmer+19, Ribli+19, Pan+19, Ntampaka+19, Alexander+20, Arjona+20, Coogan+20, Escamilla- Rivera+20, Hortua+20, Vama+20, Vernardos+20, Wang+20, Mao+20, Arico+20, Villaescusa_navarro+20, Singh+20, Park+21, Modi+21, Villaescusa-Navarro+21ab, Moriwaki+21, DeRose+21, Makinen+21, Villaescusa-Navaroo+22

    the forward modeling road to cosmological inference

    • Instead of trying to analytically evaluate the likelihood $p(x | \theta)$, let us build a forward model of the observables.
      $\Longrightarrow$ The simulator becomes the physical model.

    • Each component of the model is now tractable, but at the cost of a large number of latent variables.

    Benefits of a forward modeling approach
    • Fully exploits the information content of the data (aka "full field inference").

    • Easy to incorporate systematic effects.

    • Easy to combine multiple cosmological probes by joint simulations.
    (Schneider et al. 2015)

    ...so why is this not mainstream?

    The Challenge of Simulation-Based Inference
    $$ p(x|\theta) = \int p(x, z | \theta) dz = \int p(x | z, \theta) p(z | \theta) dz $$ Where $z$ are stochastic latent variables of the simulator.

    $\Longrightarrow$ This marginal likelihood is intractable! Hence the phrase "Likelihood-Free Inference"

    How to do inference without evaluating the likelihood of the model?

    Black-box Simulators Define Implicit Distributions

    • A black-box simulator defines $p(x | \theta)$ as an implicit distribution, you can sample from it but you cannot evaluate it.
    • Key Idea: Use a parametric distribution model $\mathbb{P}_\varphi$ to approximate the implicit distribution $\mathbb{P}$.

    True $\mathbb{P}$

    Samples $x_i \sim \mathbb{P}$

    Model $\mathbb{P}_\varphi$

    Conditional Density Estimation with Neural Networks

    • I assume a forward model of the observations: \begin{equation} p( x ) = p(x | \theta) \ p(\theta) \nonumber \end{equation} All I ask is the ability to sample from the model, to obtain $\mathcal{D} = \{x_i, \theta_i \}_{i\in \mathbb{N}}$

    • I am going to assume $q_\phi(\theta | x)$ a parametric conditional density

    • Optimize the parameters $\phi$ of $q_{\phi}$ according to \begin{equation} \min\limits_{\phi} \sum\limits_{i} - \log q_{\phi}(\theta_i | x_i) \nonumber \end{equation} In the limit of large number of samples and sufficient flexibility \begin{equation} \boxed{q_{\phi^\ast}(\theta | x) \approx p(\theta | x)} \nonumber \end{equation}
    $\Longrightarrow$ One can asymptotically recover the posterior by optimizing a parametric estimator over
    the Bayesian joint distribution
    $\Longrightarrow$ One can asymptotically recover the posterior by optimizing a Deep Neural Network over
    a simulated training set.

    Neural Density Estimation

    Bishop (1994)

    Dinh et al. 2016

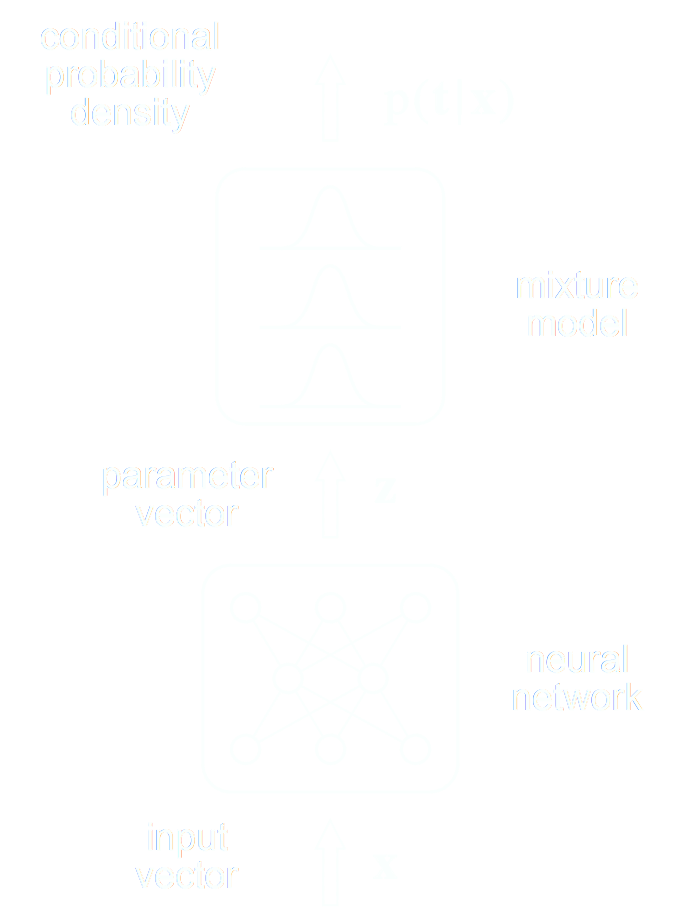

    • Mixture Density Networks \begin{equation} p(\theta | x) = \prod_i \pi_i(x) \ \mathcal{N}\left(\mu_i(x), \ \sigma_i(x) \right) \nonumber \end{equation}

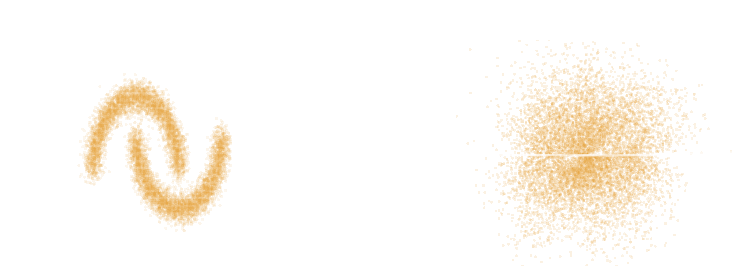

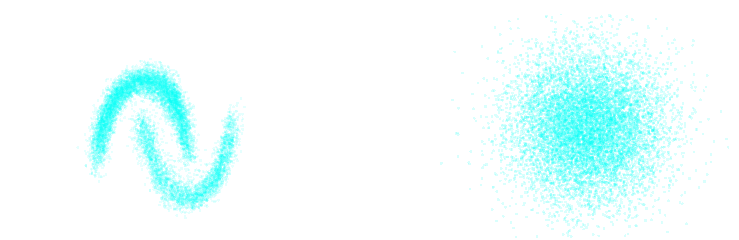

    • Conditional Normalizing Flows \begin{equation} p(\theta| x) = p_z \left( z = f^{-1}(\theta, x) \right) \left| \frac{\partial f^{-1}(\theta, x)}{\partial x} \right| \end{equation}

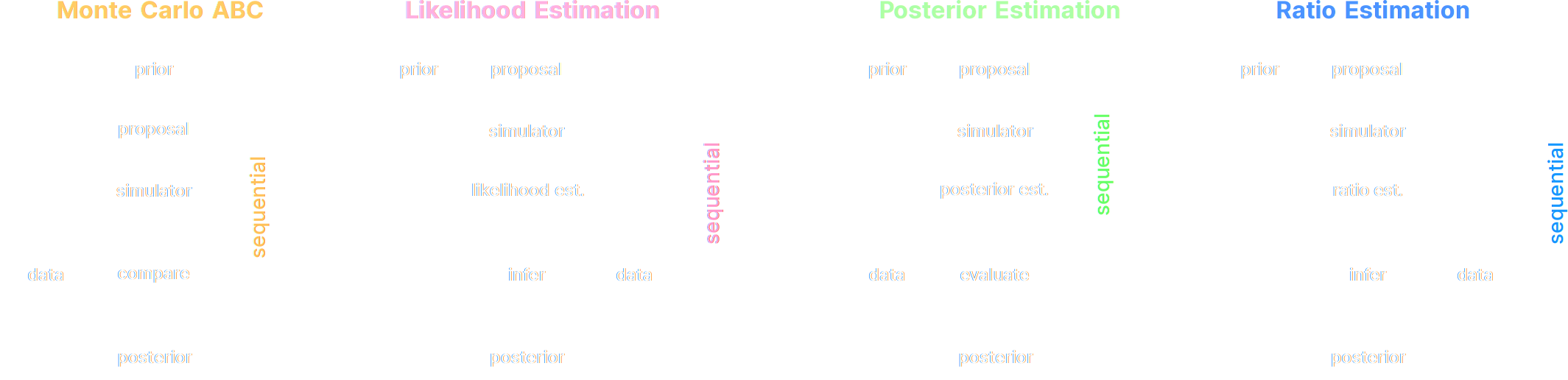

    A variety of algorithms

    Lueckmann, Boelts, Greenberg, Gonçalves, Macke (2021)

    A few important points:

    • Amortized inference methods, which estimate $p(\theta | x)$, can greatly speed up posterior estimation once trained.

    • Sequential Neural Posterior/Likelihood Estimation methods can actively sample simulations needed to refine the inference.

    Automated Summary Statistics Extraction

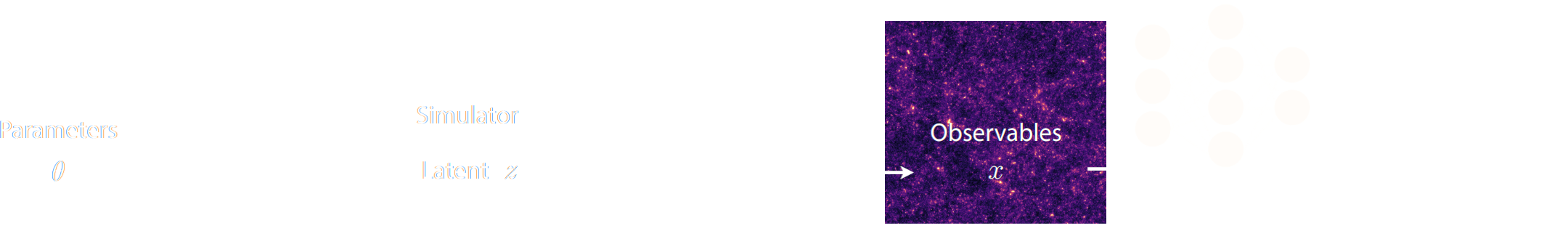

    • Introduce a parametric function $f_\varphi$ to reduce the dimensionality of the data while preserving information.
    Makinen, Charnock, Alsing, Wandelt (2021)
    Information-based loss functions

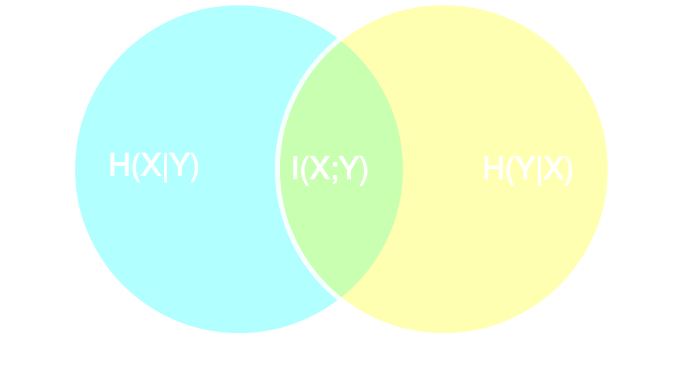

    • Variational Mutual Information Maximization $$ \mathcal{L} \ = \ \mathbb{E}_{y, \theta} [ \log q_\phi(\theta | f_\varphi(x)) ] \leq I(Y; \Theta) $$
      Jeffrey, Alsing, Lanusse (2021)

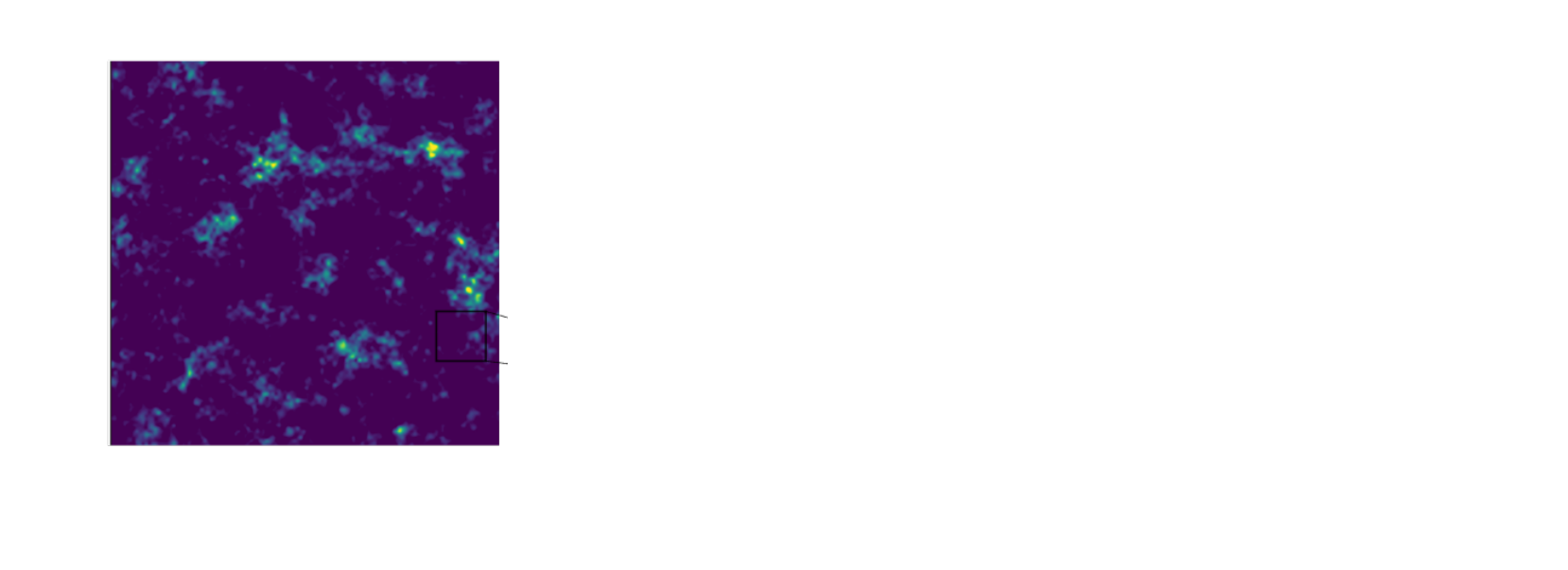

    • Information Maximization Neural Network $$\mathcal{L} \ = \ - | \det \mathbf{F} | \ \mbox{with} \ \mathbf{F}_{\alpha, \beta} = tr[ \mu_{\alpha}^t C^{-1} \mu_{\beta} ] $$
      Charnock, Lavaux, Wandelt (2018)

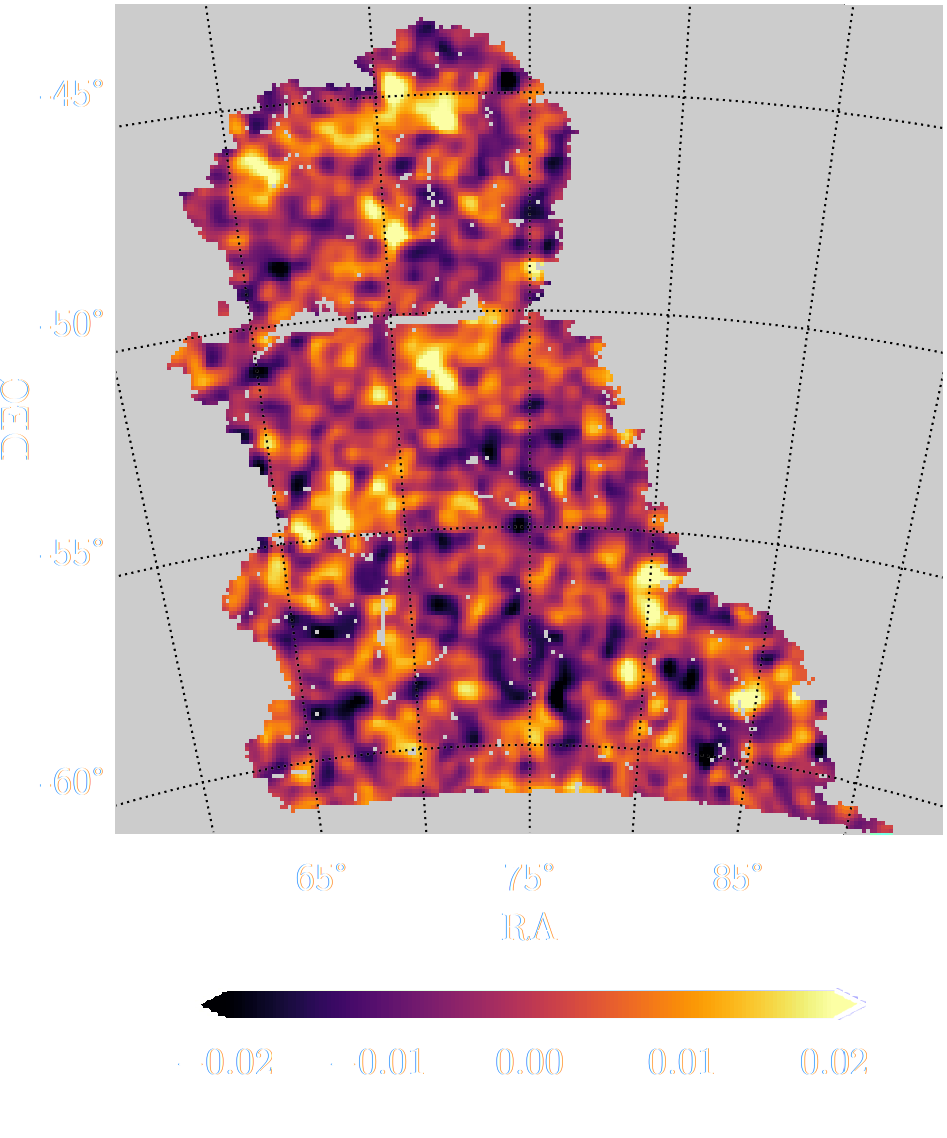

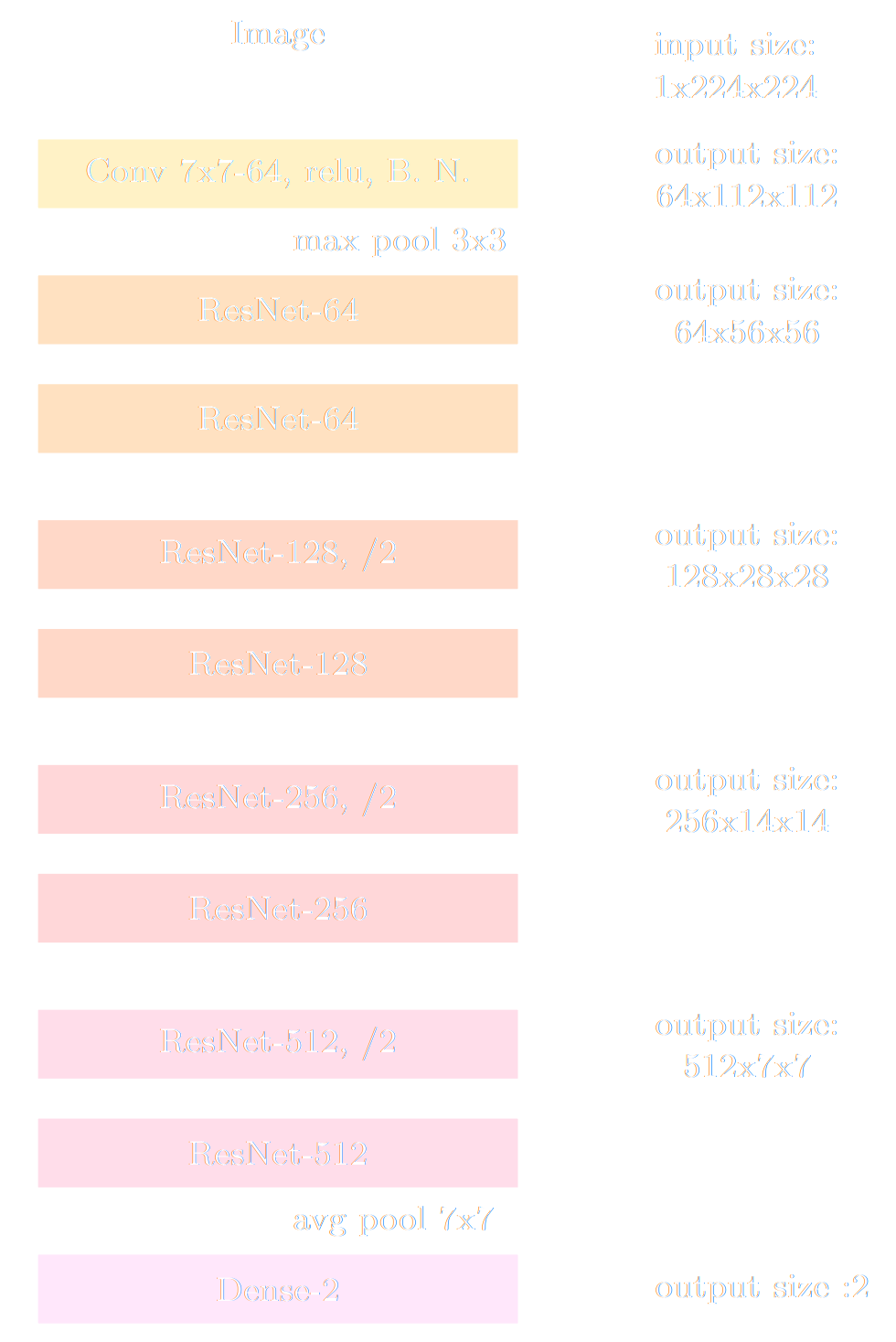

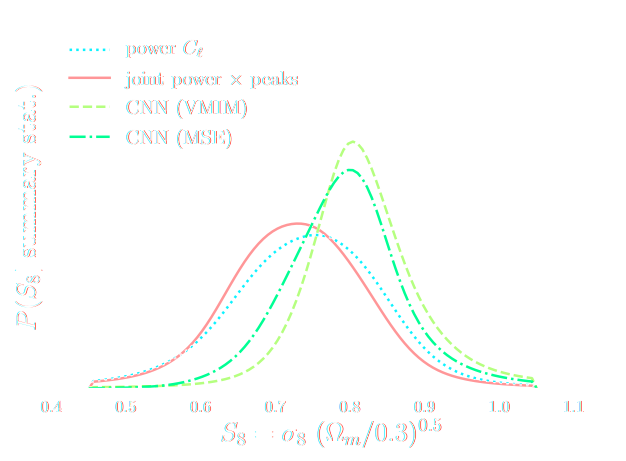

    Example of application: Likelihood-Free parameter inference with DES SV

    Jeffrey, Alsing, Lanusse (2021)

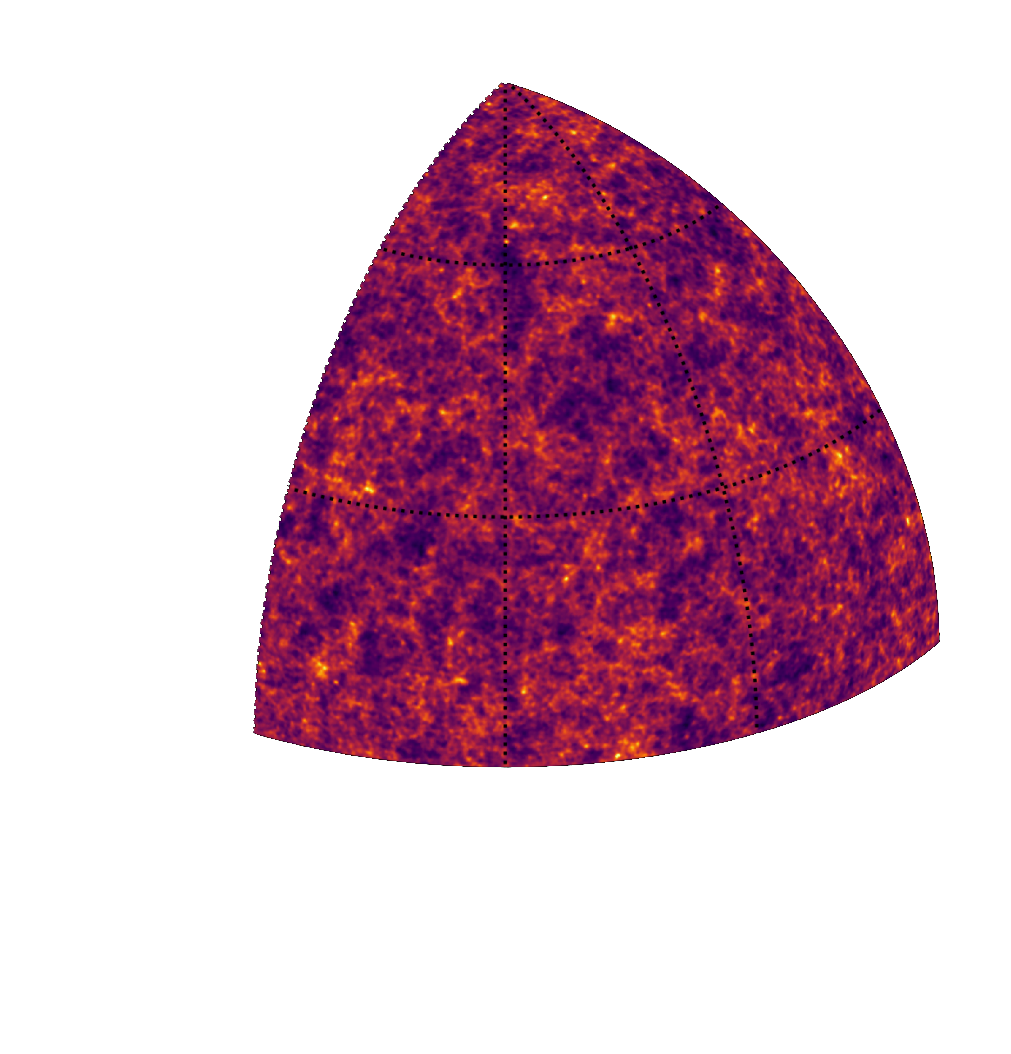

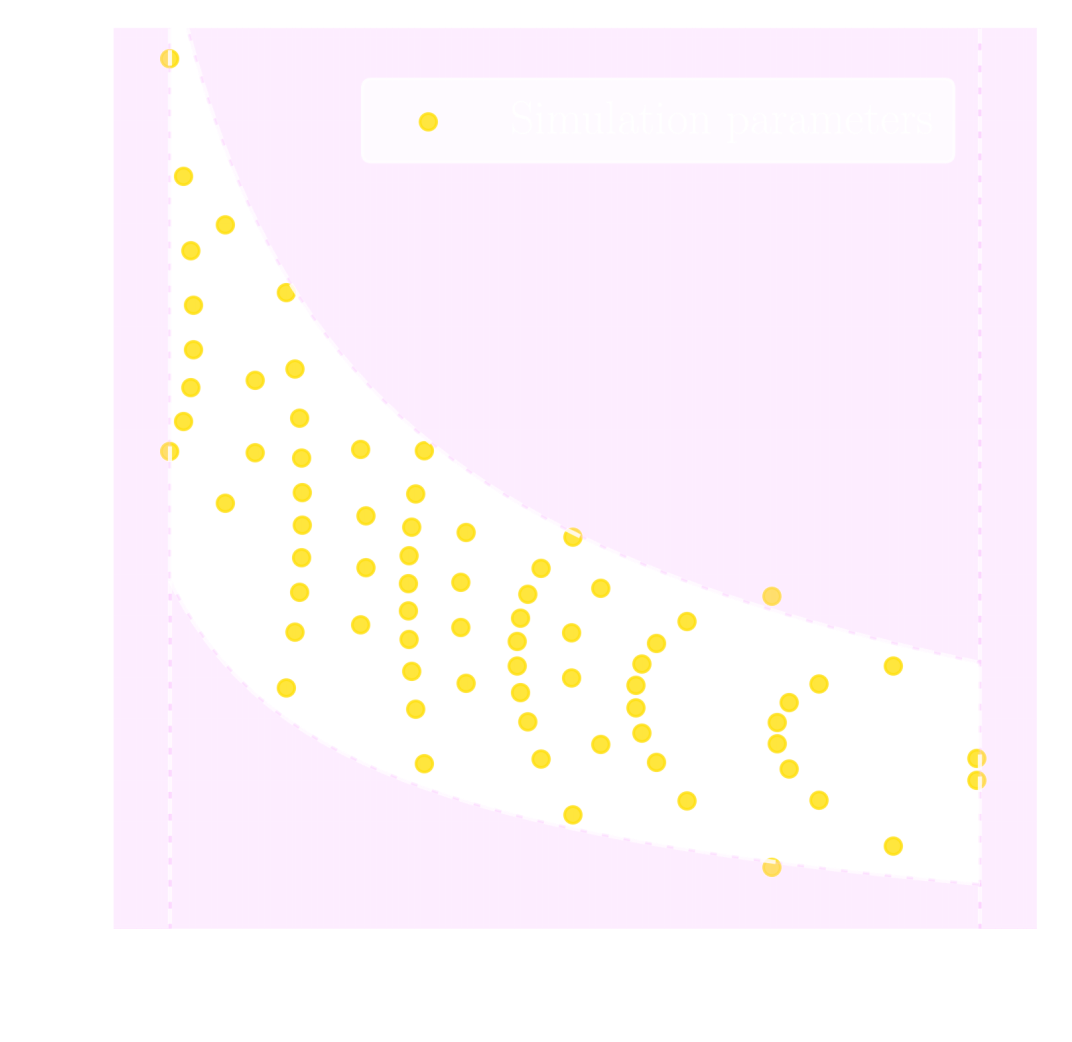

    Suite of N-body + raytracing simulations: $\mathcal{D}$


    • Likelihood-Free Inference automatizes inference over numerical simulators.
      • Turns both summary extraction and inference problems into an optimization problems
      • Deep learning allows us to solve that problem!

    • In the context of upcoming surveys, this techniques provides many advantages:
      • Amortized inference: near instantaneous parameter inference, extremely useful for time-domain.
      • Optimal information extraction: no longer need for restrictive modeling assumptions needed to obtain tractable likelihoods.

    Will we be able to exploit all of the information content of Euclid?
    $\Longrightarrow$ Not rightaway, but it is not the fault of Deep Learning!

    • Deep Learning has redefined the limits of our statistical tools, creating additional demand on the accuracy of simulations far beyond the power spectrum.

    • Neural compression methods have the downside of being opaque. It is much harder to detect unknown systematics.

    • We will need a significant number of large volume, high resolution simulations.
