Generative Models

The Key to Manipulating Implicit Distributions for Bayesian Inference


François Lanusse










slides at eiffl.github.io/talks/Ascona2023

the Rubin Observatory Legacy Survey of Space and Time

  • 1000 images each night, 15 TB/night for 10 years

  • 18,000 square degrees, observed once every few days

  • Tens of billions of objects, each one observed $\sim1000$ times

Previous generation survey: SDSS




















Image credit: Peter Melchior

Current generation survey: DES




















Image credit: Peter Melchior

LSST precursor survey: HSC




















Image credit: Peter Melchior

We need to rethink all stages of data analysis for modern surveys


Bosch et al. 2017

Jeffrey, Lanusse, et al. 2020

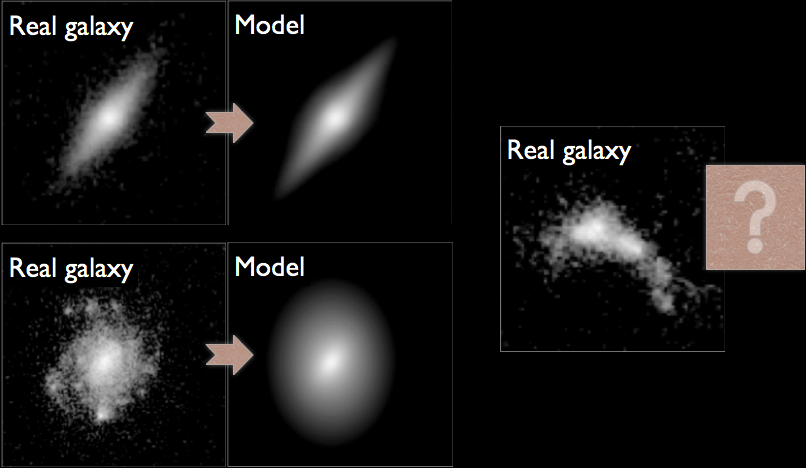

  • Galaxies are no longer blobs.
  • Signals are no longer Gaussian.


$\Longrightarrow$ This is the end of the analytic era...

... but the beginning of the data-driven era


Case I: Examples from data, no accurate physical model

Mandelbaum et al. 2014

Case II: Physical model only available as a simulator

Osato et al. 2020


$\Longrightarrow$ Examples of implicit distributions: we have access to samples $\{x_0, x_1, \ldots, x_n \}$ but we cannot evaluate $p(x)$.

How can we leverage implicit distributions
for physical Bayesian inference?

The answer is: Deep Generative Modeling


  • The goal of generative modeling is to learn an implicit distribution $\mathbb{P}$ from which the training set $X = \{x_0, x_1, \ldots, x_n \}$ is drawn.

  • Usually, this means building a parametric model $\mathbb{P}_\theta$ that tries to be close to $\mathbb{P}$.


True $\mathbb{P}$

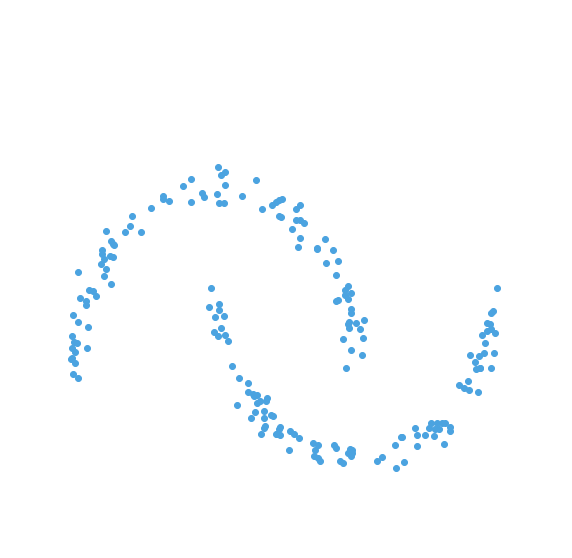

Samples $x_i \sim \mathbb{P}$

Model $\mathbb{P}_\theta$


  • Once trained, you can typically sample from $\mathbb{P}_\theta$ and/or evaluate the likelihood $p_\theta(x)$.

A brief survey of Generative Models Families

  • Latent Variable Models:
    Assume the following form for the model disribution: $$ x = f_\theta(z) \qquad \mbox{with} \qquad z \sim p(z)$$ This is the case of Generative Adversarial Networks, Variational Auto-Encoders, Normalizing Flows.

  • Auto-Regressive Models:
    Assume an autoregressive decomposition of the signal into products of 1D conditional distributions: $$ p_\theta(x) = p_\theta(x_0) p_\theta(x_1 | x_0) \ldots p_\theta(x_n | x_{n-1}, \ldots x_{0}) $$ This is the case of PixelCNN, GPT-3

  • Diffusion Models:
    Target distribution generated by a reverse noise diffusion process controled by a Stochastic Differential Equation (SDE).

The evolution of generative models

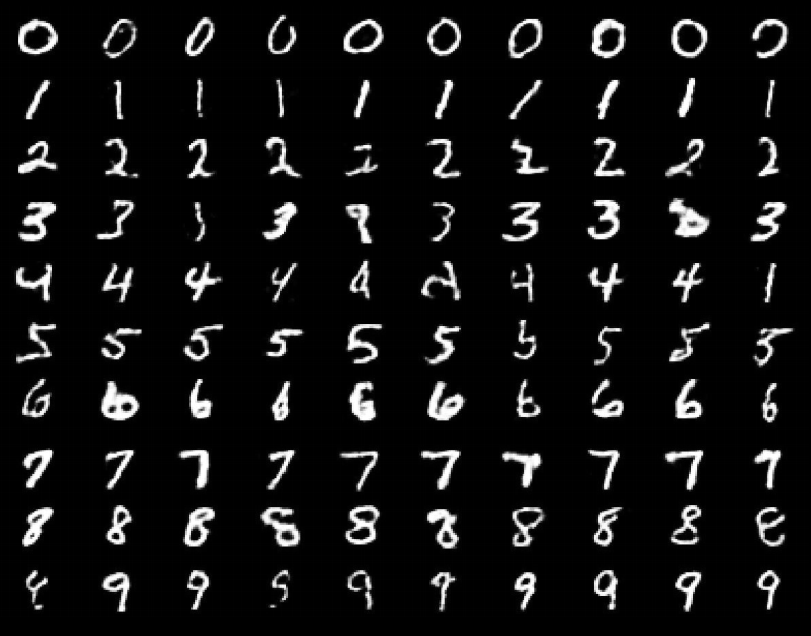

  • Deep Belief Network
    (Hinton et al. 2006)

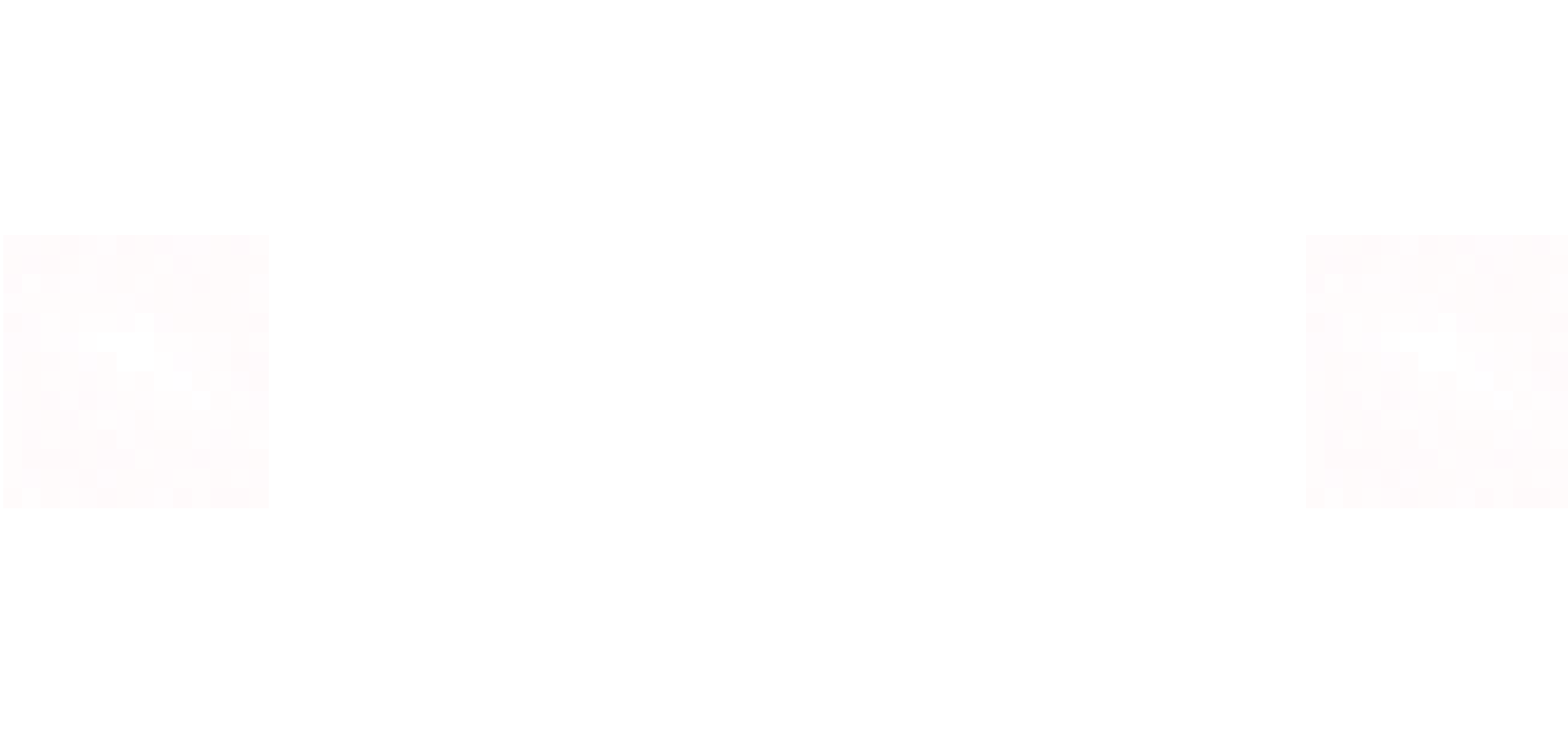

  • Variational AutoEncoder
    (Kingma & Welling 2014)

  • Generative Adversarial Network
    (Goodfellow et al. 2014)

  • Wasserstein GAN
    (Arjovsky et al. 2017)

  • Midjourney v5 Guided Latent Diffusion (2023)





In the rest of this talk


Main idea: Use generative models to complement physical models with implicit distributions, and perform inference in a Bayesian context.
  • High-Dimensional Bayesian Inference for Inverse Problems

  • Hybrid Deep Learning/Physical Hierarchical Bayesian Models


Implicit Distributions as Priors in
Inverse Problems


Branched GAN model for deblending (Reiman & Göhre, 2018)
The issue with using deep learning as a black-box
  • No explicit control of noise, PSF, number of sources.
    • Model would have to be retrained for all observing configurations

  • No guarantees on the network output (e.g. flux preservation, artifacts)

  • No proper uncertainty quantification.

Linear inverse problems

$\boxed{y = \mathbf{A}x + n}$

$\mathbf{A}$ is known and encodes our physical understanding of the problem.
$\Longrightarrow$ When non-invertible or ill-conditioned, the inverse problem is ill-posed with no unique solution $x$
Deconvolution
Inpainting
Denoising

What Would a Bayesian Do?

$\boxed{y = \mathbf{A}x + n}$

$$ p(x | y) \propto p(y | x) \ p(x) $$

  • $p(y | x)$ is the data likelihood, which contains the physics

  • $p(x)$ is our prior knowledge on the solution.


With these concepts in hand, we want to estimate the Maximum A Posteriori solution:

$$\hat{x} = \arg\max\limits_x \ \log p(y \ | \ x) + \log p(x)$$
For instance, if $n$ is Gaussian, $\hat{x} = \arg\max\limits_x \ - \frac{1}{2} \parallel y - \mathbf{A} x \parallel_{\mathbf{\Sigma}}^2 + \log p(x)$

How do you choose the prior ?

Classical examples of signal priors

Sparse
$$ \log p(x) = \parallel \mathbf{W} x \parallel_1 $$
Gaussian $$ \log p(x) = x^t \mathbf{\Sigma^{-1}} x $$
Total Variation $$ \log p(x) = \parallel \nabla x \parallel_1 $$

But what about this?

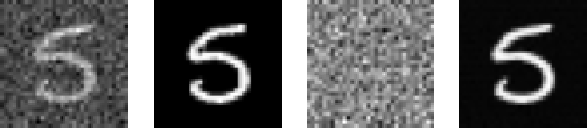

Getting started with Deep Priors: deep denoising example

$$ \boxed{{\color{Orchid} y} = {\color{SkyBlue} x} + n} $$
  • Let us assume we have access to examples of $ {\color{SkyBlue} x}$ without noise.

  • We learn the distribution of noiseless data $\log p_\theta(x)$ from samples using a deep generative model.

  • The solution should lie on the realistic data manifold, symbolized by the two-moons distribution.

    We want to solve for the Maximum A Posterior solution:

    $$\arg \max - \frac{1}{2} \parallel {\color{Orchid} y} - {\color{SkyBlue} x} \parallel_2^2 + \log p_\theta({\color{SkyBlue} x})$$ This can be done by gradient descent as long as one has access to the score function $\frac{\color{orange} d \color{orange}\log \color{orange}p\color{orange}(\color{orange}x\color{orange})}{\color{orange} d \color{orange}x}$.

Data-driven priors for astronomical inverse problems



Work in collaboration with
Peter Melchior, Fred Moolekamp, Remy Joseph




The Scarlet algorithm: deblending as an optimization problem

Melchior et al. 2018
$$ \mathcal{L} = \frac{1}{2} \parallel \mathbf{\Sigma}^{-1/2} (\ Y - P \ast A S \ ) \parallel_2^2 - \sum_{i=1}^K \log p_{\theta}(S_i) + \sum_{i=1}^K g_i(A_i) + \sum_{i=1}^K f_i(S_i)$$
Where for a $K$ component blend:
  • $P$ is the convolution with the instrumental response

  • $A_i$ are channel-wise galaxy SEDs, $S_i$ are the morphology models

  • $\mathbf{\Sigma}$ is the noise covariance

  • $\log p_\theta$ is a PixelCNN prior

  • $f_i$ and $g_i$ are arbitrary additional non-smooth consraints, e.g. positivity, monotonicity...
$\Longrightarrow$ Explicit physical modeling of the observed sky

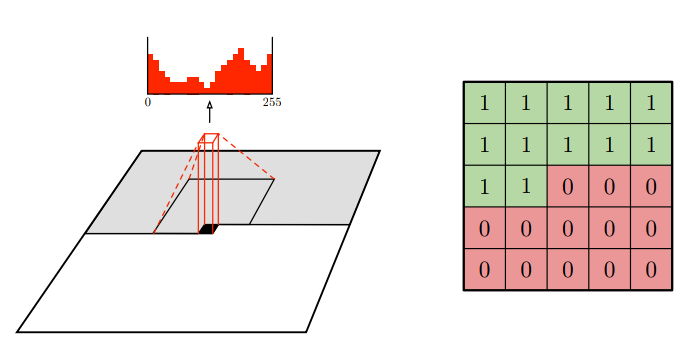

PixelCNN: Likelihood-based Autoregressive generative model



Models the probability $p(x)$ of an image $x$ as: $$ p_{\theta}(x) = \prod_{i=0}^{n} p_{\theta}(x_i | x_{i-1} \ldots x_0) $$
  • $p_\theta(x)$ is explicit! We get a number out.

  • We can train the model to learn a distribution of isolated galaxy images.

  • We can then evaluate its gradient $\frac{\color{orange} d \color{orange}\log \color{orange}p\color{orange}(\color{orange}x\color{orange})}{\color{orange} d \color{orange}x}$.


van den Oord et al. 2016


Training the morphology prior

Postage stamps of isolated COSMOS galaxies used for training, at Roman resolution and fixed fiducial PSF

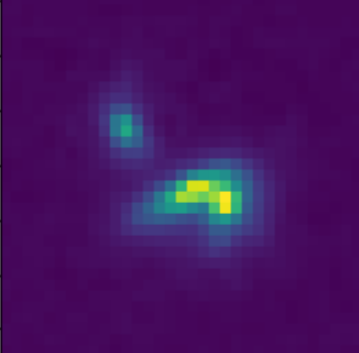

isolated galaxy $\log p_\theta(x) = 3293.7$
artificial blend $\log p_\theta(x) = 3100.5 $

Scarlet in action

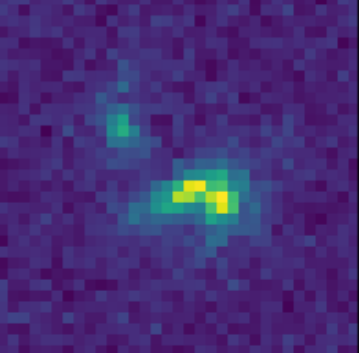

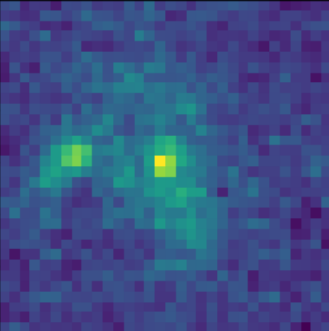

Input blend
Solution

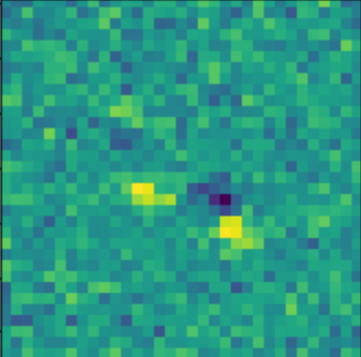

Residuals
  • Classic priors (monotonicity, symmetry).

  • Deep Morphology prior.

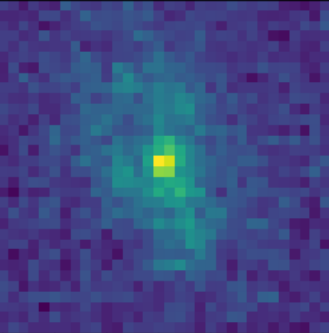

True Galaxy

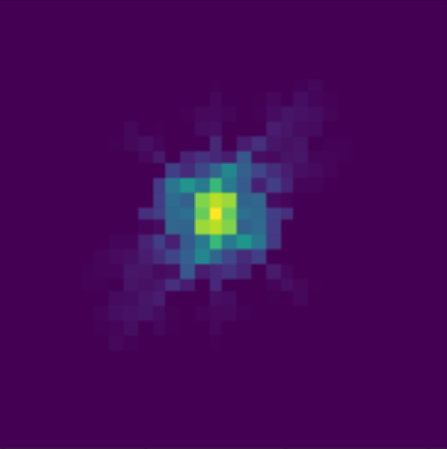

Deep Morphology Prior Solution
Monotonicity + Symmetry Solution

But what about uncertainties?

What Would a Bayesian Do?

$\boxed{y = \mathbf{A}x + n}$

$$ p(x | y) \propto p(y | x) \ p(x) $$

  • $p(y | x)$ is the data likelihood, which contains the physics

  • $p(x)$ is our prior knowledge on the solution.


With these concepts in hand, we can:

  • Estimate the Maximum A Posteriori solution: $$\hat{x} = \arg\max\limits_x \ \log p(y \ | \ x) + \log p(x)$$
  • Estimate the full posterior p(x|y) with Markov Chain Monte-Carlo or Variational Inference methods

$\Longrightarrow$ Until very recently sampling from such posteriors in high number of dimensions remained very difficult!

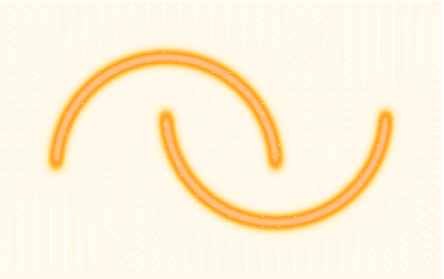

First realization: The score is all you need!


  • Whether you are looking for the MAP or sampling with HMC or MALA, you only need access to the score of the posterior: $$\frac{\color{orange} d \color{orange}\log \color{orange}p\color{orange}(\color{orange}x \color{orange}|\color{orange} y\color{orange})}{\color{orange} d \color{orange}x}$$
    • Gradient descent: $x_{t+1} = x_t + \tau \nabla_x \log p(x_t | y) $
    • Langevin algorithm: $x_{t+1} = x_t + \tau \nabla_x \log p(x_t | y) + \sqrt{2\tau} n_t$



  • The score of the full posterior is simply: $$\nabla_x \log p(x |y) = \underbrace{\nabla_x \log p(y |x)}_{\mbox{known explicitly}} \quad + \quad \underbrace{\nabla_x \log p(x)}_{\mbox{known implicitly}}$$ $\Longrightarrow$ "all" we have to do is model/learn the score of the prior.

Neural Score Estimation by Denoising Score Matching (Vincent 2011)

  • Denoising Score Matching: An optimal Gaussian denoiser learns the score of a given distribution.
    • If $x \sim \mathbb{P}$ is corrupted by additional Gaussian noise $u \in \mathcal{N}(0, \sigma^2)$ to yield $$x^\prime = x + u$$
    • Let's consider a denoiser $r_\theta$ trained under an $\ell_2$ loss: $$\mathcal{L}=\parallel x - r_\theta(x^\prime, \sigma) \parallel_2^2$$
    • The optimal denoiser $r_{\theta^\star}$ verifies: $$\boxed{\boldsymbol{r}_{\theta^\star}(\boldsymbol{x}', \sigma) = \boldsymbol{x}' + \sigma^2 \nabla_{\boldsymbol{x}} \log p_{\sigma^2}(\boldsymbol{x}')}$$
$\boldsymbol{x}'$
$\boldsymbol{x}$
$\boldsymbol{x}'- \boldsymbol{r}^\star(\boldsymbol{x}', \sigma)$
$\boldsymbol{r}^\star(\boldsymbol{x}', \sigma)$

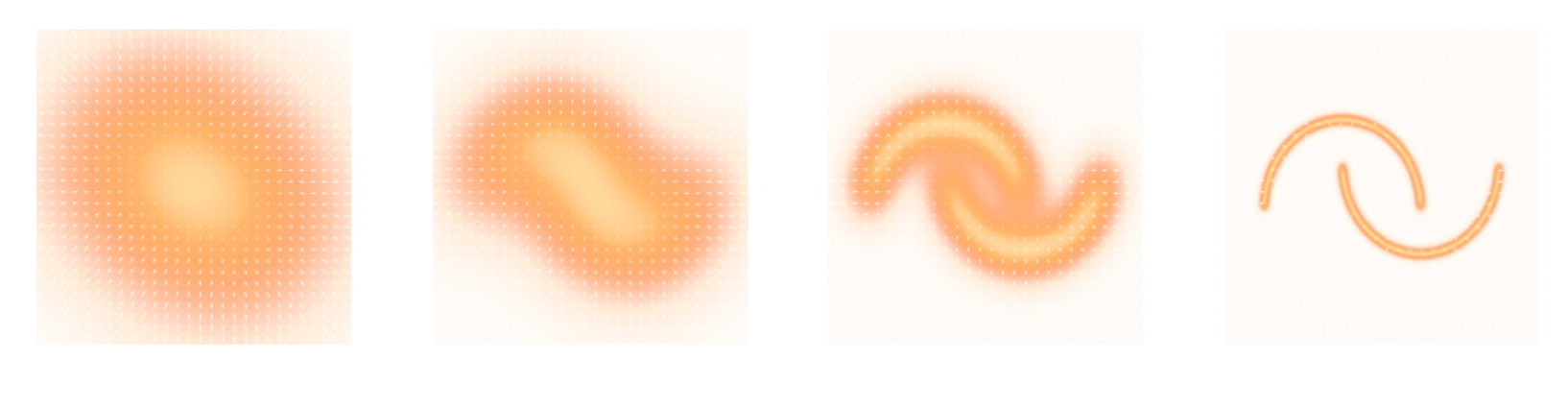

Second Realization: Annealing is everything!

  • Even with knowledge of the score, sampling in high number of dimensions is difficult!


  • Convolving a target distribution $p$ with a noise kernel, makes $p_\sigma(x) = \int \mathcal{N}(x; x^\prime, \sigma^2) (x^\prime) d x^{\prime}$ it much better behaved
    $$\sigma_1 > \sigma_2 > \sigma_3 > \sigma_4 $$

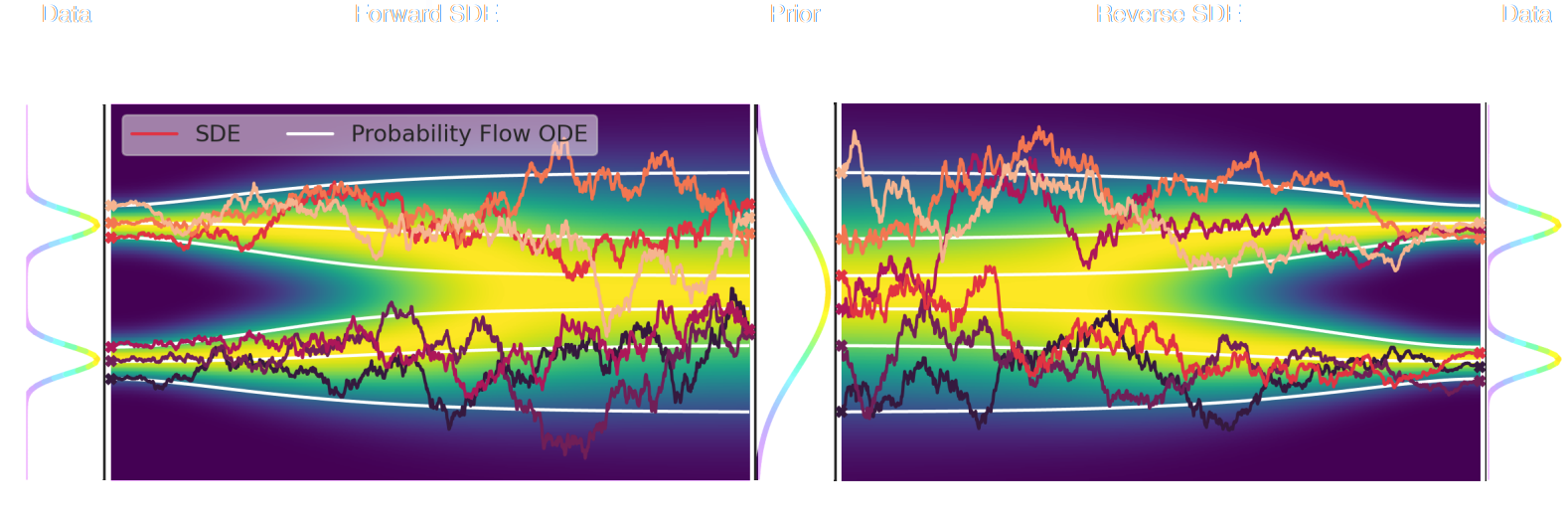

Score-Based Generative Modeling Song et al. (2021)



  • The SDE defines a marginal distribution $p_t(x)$ as the convolution of the target distribution $p(x)$ with a noise kernel $p_{t|s}(\cdot | x_s)$: $$p_t(x) = \int p(x_s) p_{t|s}(x | x_s) d x_s$$
  • For a given forward SDE that evolves $p(x)$ to $p_T(x)$, there exists a reverse SDE that evolves $p_T(x)$ back into $p(x)$. It involves having access to the marginal score $\nabla_x \log_t p(x)$.

Third realization: We do not have access to the marginal posterior score...

  • We know the following quantities:
    • Annealed likelihood (analytically): $p_\sigma(y | x) = \mathcal{N}(y; \mathbf{A} x, \mathbf{\Sigma} + \sigma^2 \mathbf{I})$
    • Annealed prior score (by score matching): $\nabla_x \log p_\sigma(x)$
  • But, unfortunately: $\boxed{p_\sigma(x|y) \neq p_\sigma(y|x) \ p_\sigma(x)}$ $\Longrightarrow$ We don't know the marginal posterior score!

  • We cannot directly use the reverse SDE/ODE of diffusion models to sample from the posterior. $$\mathrm{d} x = [f(x, t) - g^2(t) \underbrace{\nabla_x \log p_t(x|y)}_{\mbox{unknown}} ] \mathrm{d}t + g(t) \mathrm{d} w$$
Proposed sampling strategy (Remy et al. 2020)
  • Even if not equivalent to the marginal posterior score, $\nabla_x \log p_{\sigma^2}(y | x) + \nabla_x \log p_{\sigma^2}(x)$ still has good properties:
    • Tends to an isotropic Gaussian distribution for large $\sigma$
    • Corresponds to the target posterior for $\sigma=0$

  • If we anneal Langevin or HMC sampling sufficiently slowly (i.e. timescale of change of $\sigma$ is much larger than the timescale of the SDE) we can expect to sample from the target posterior.

High-Dimensional Bayesian Inference for Inverse Problems With Neural Score Estimation


Work in collaboration with:
Benjamin Remy, Zaccharie Ramzi


$\Longrightarrow$ Learn complex priors by Neural Score Estimation and sample from posterior with gradient-based MCMC.

Let's set the stage: Gravitational lensing

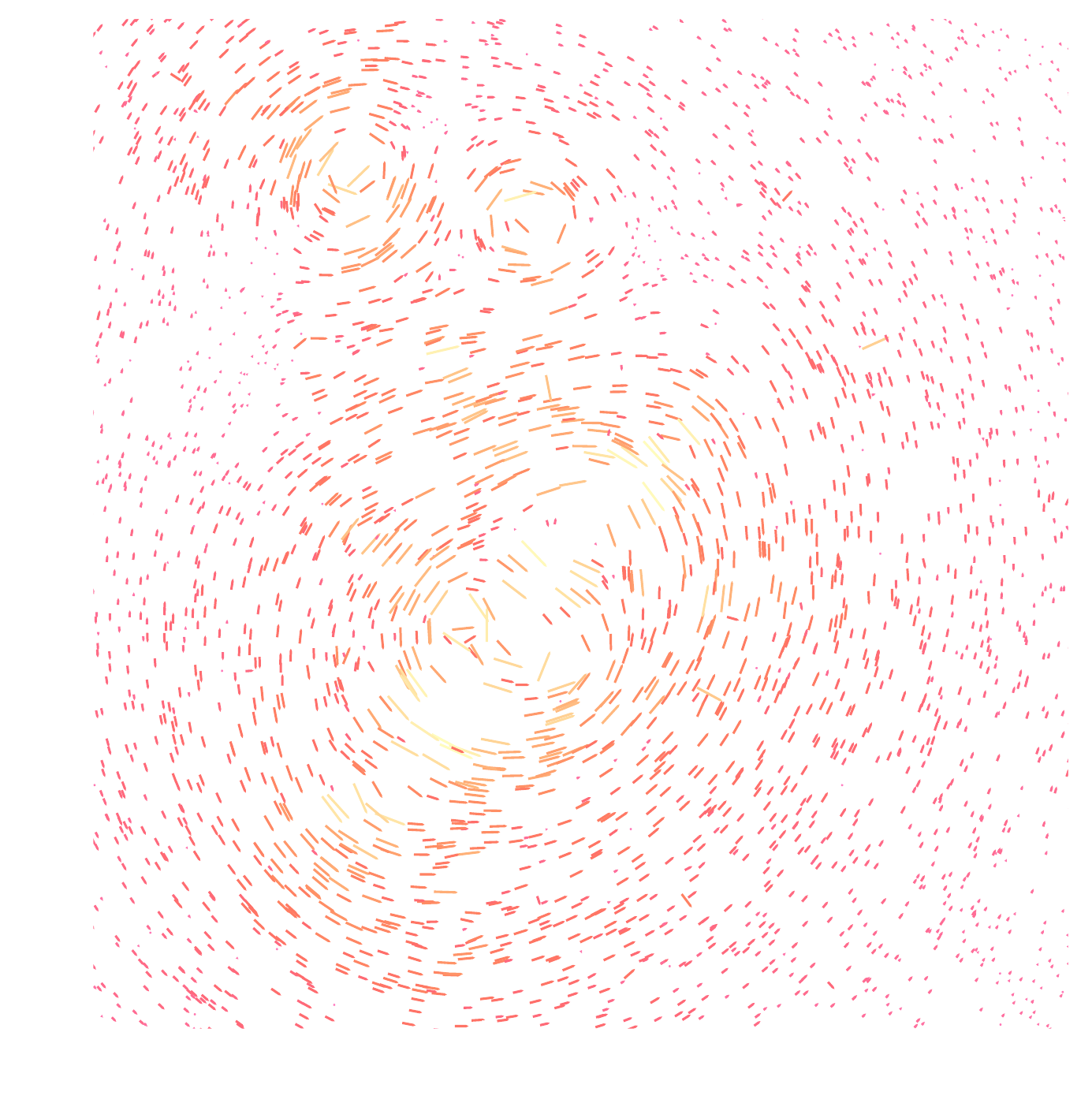

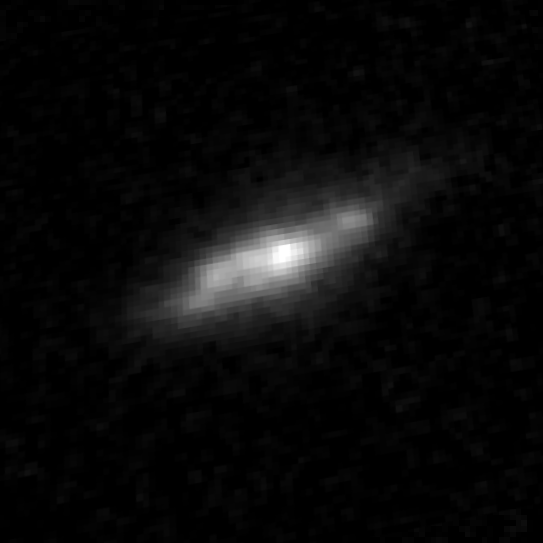

Galaxy shapes as estimators for gravitational shear
$$ e = \gamma + e_i \qquad \mbox{ with } \qquad e_i \sim \mathcal{N}(0, I)$$
  • We are trying the measure the ellipticity $e$ of galaxies as an estimator for the gravitational shear $\gamma$

Gravitational Lensing as an Inverse Problem

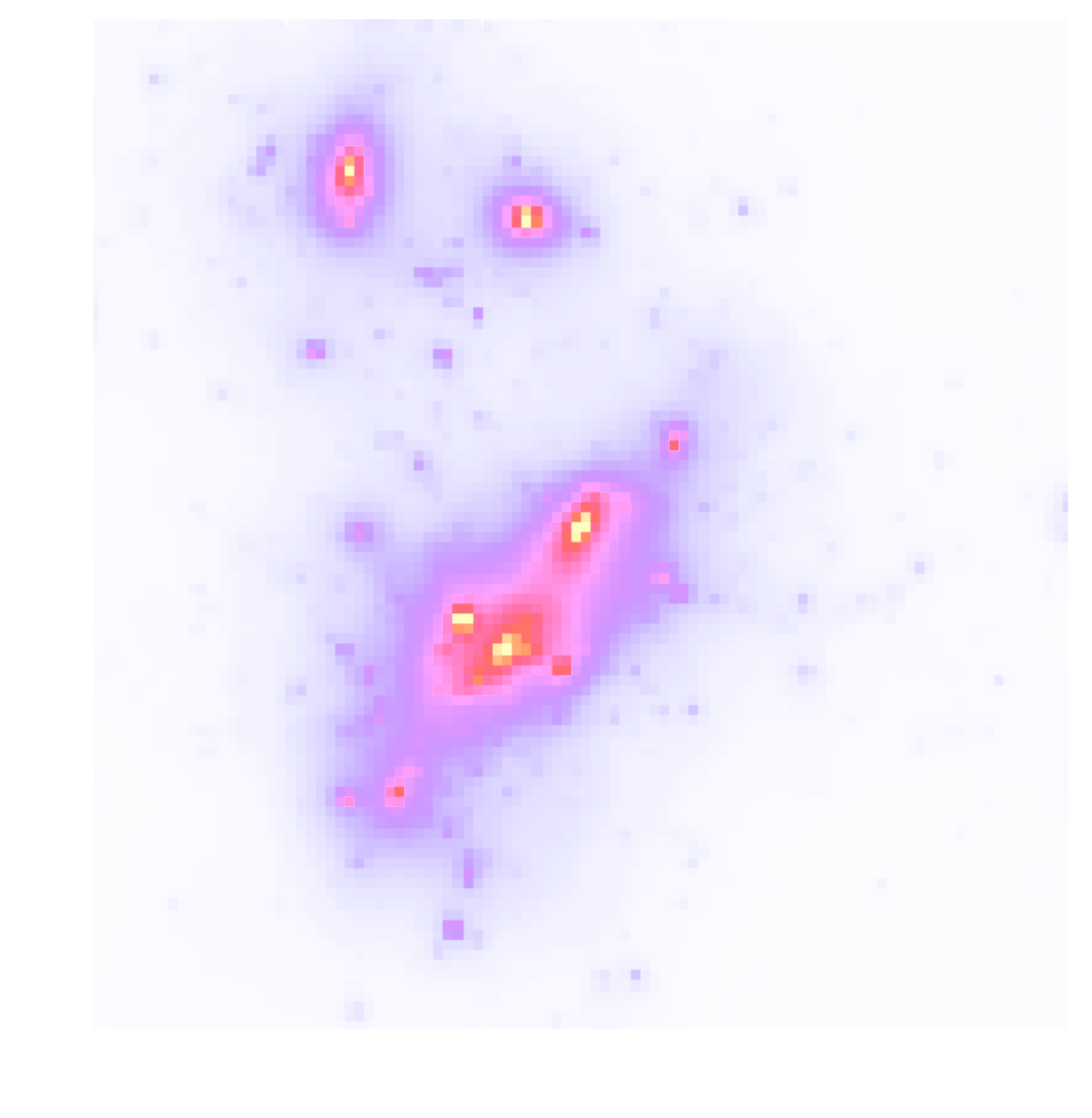

Shear $\gamma$
Convergence $\kappa$
$$\gamma_1 = \frac{1}{2} (\partial_1^2 - \partial_2^2) \ \Psi \quad;\quad \gamma_2 = \partial_1 \partial_2 \ \Psi \quad;\quad \kappa = \frac{1}{2} (\partial_1^2 + \partial_2^2) \ \Psi$$
$$\boxed{\gamma = \mathbf{P} \kappa}$$

Writing down the convergence map log posterior

$$ \log p( \kappa | e) = \underbrace{\log p(e | \kappa)}_{\simeq -\frac{1}{2} \parallel e - P \kappa \parallel_\Sigma^2} + \log p(\kappa) +cst $$
  • The likelihood term is known analytically, given to us by the physics of gravitational lensing.
  • There is no close form expression for the prior on dark matter maps $\kappa$.
    However:
    • We do have access to samples of full implicit prior through simulations: $X = \{x_0, x_1, \ldots, x_n \}$ with $x_i \sim \mathbb{P}$
$\Longrightarrow$ Our strategy: Learn the prior from simulation, and then sample the full posterior.

Example of one chain during annealing

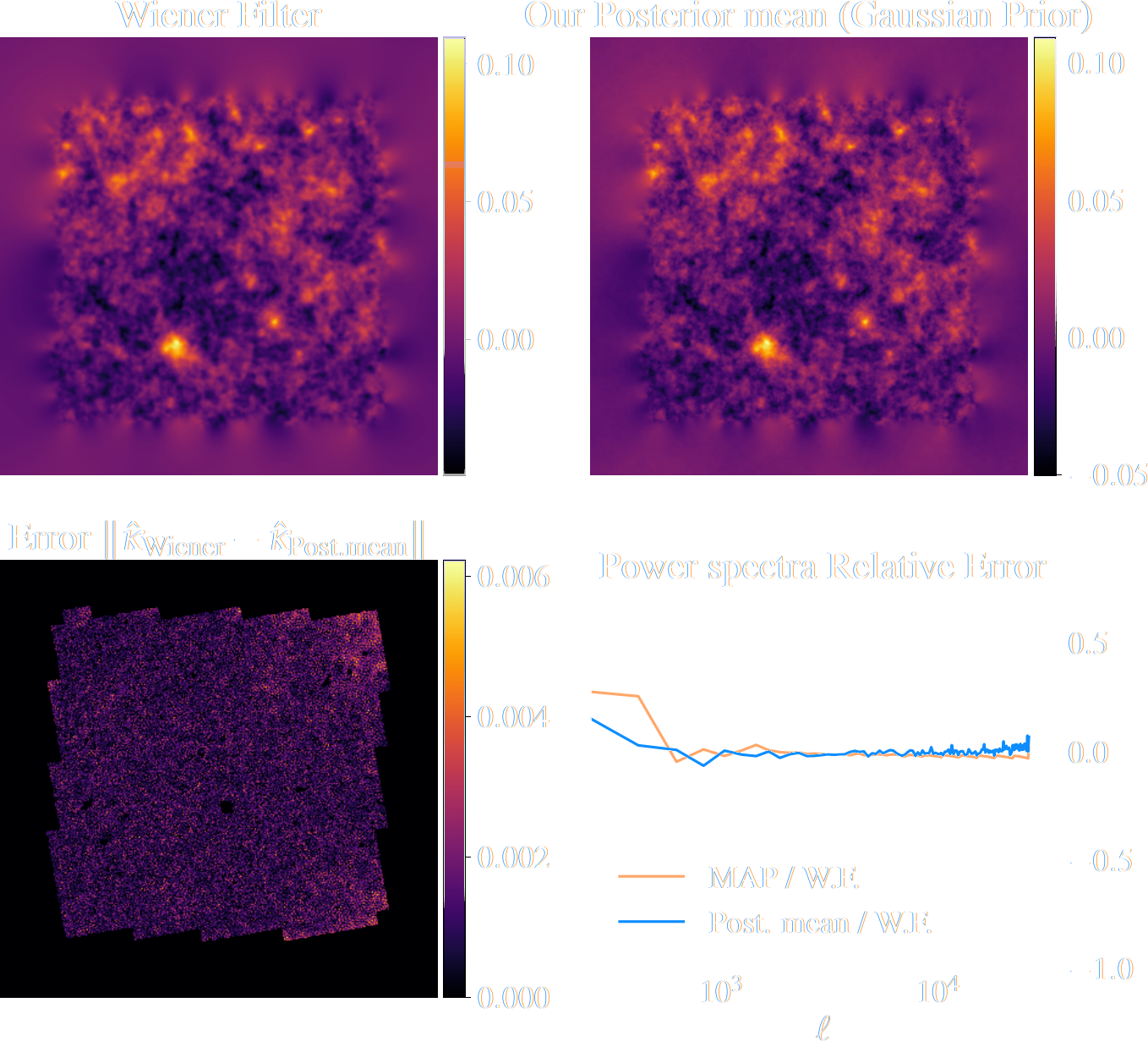

Validating Posterior Sampling under a Gaussian prior

Illustration on $\kappa$-TNG simulations

Remy, Lanusse, et al. (2022)

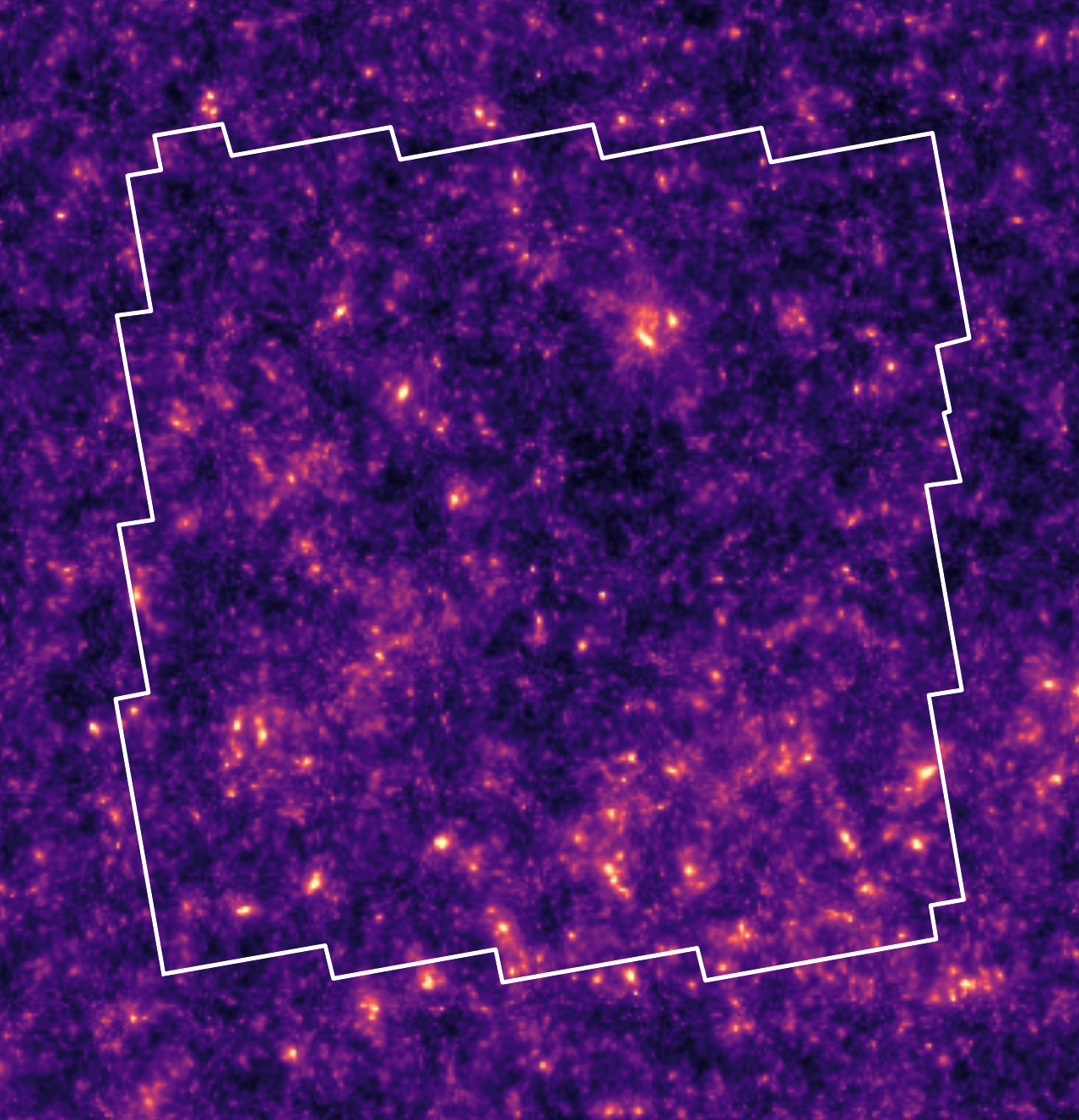

True convergence map

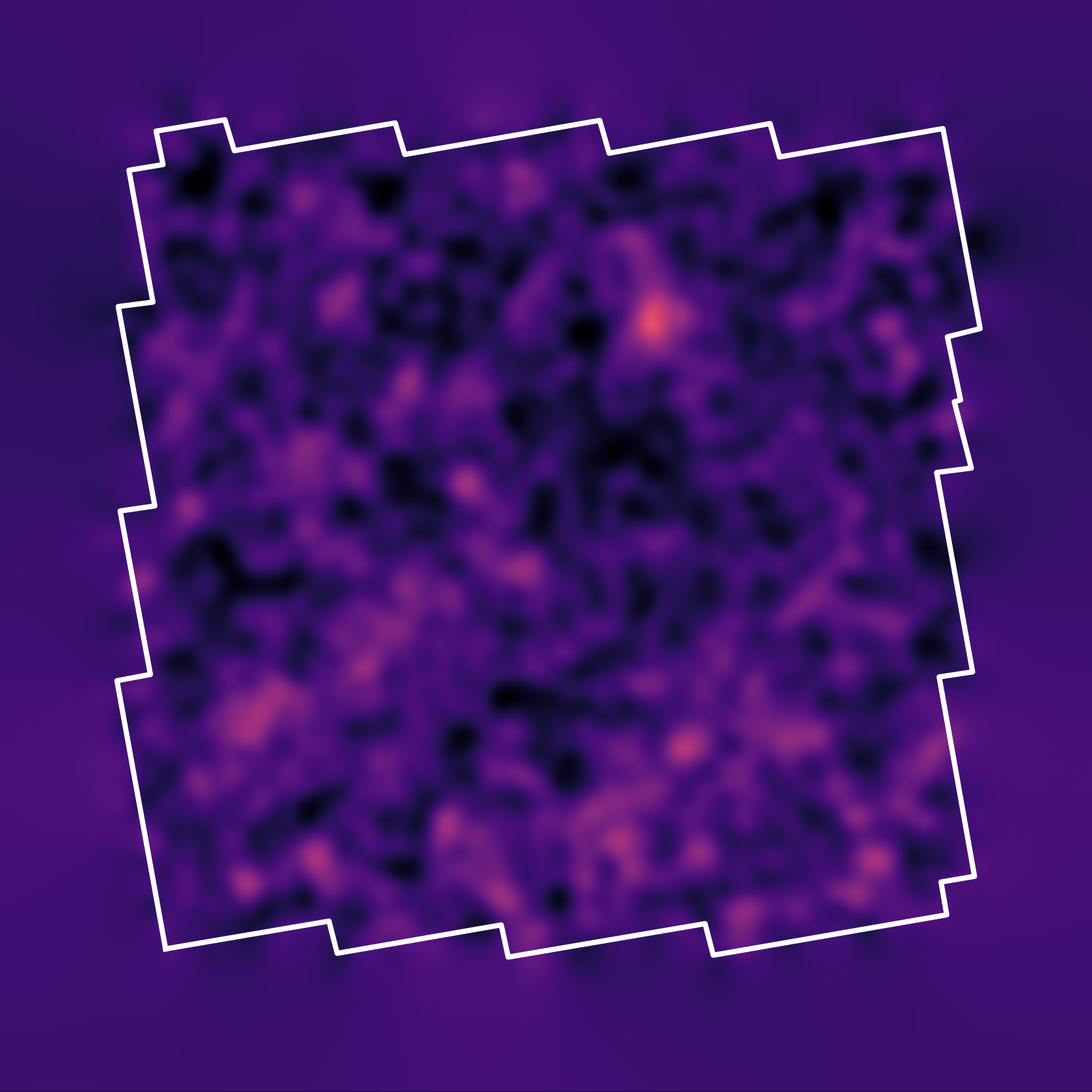

Traditional Kaiser-Squires

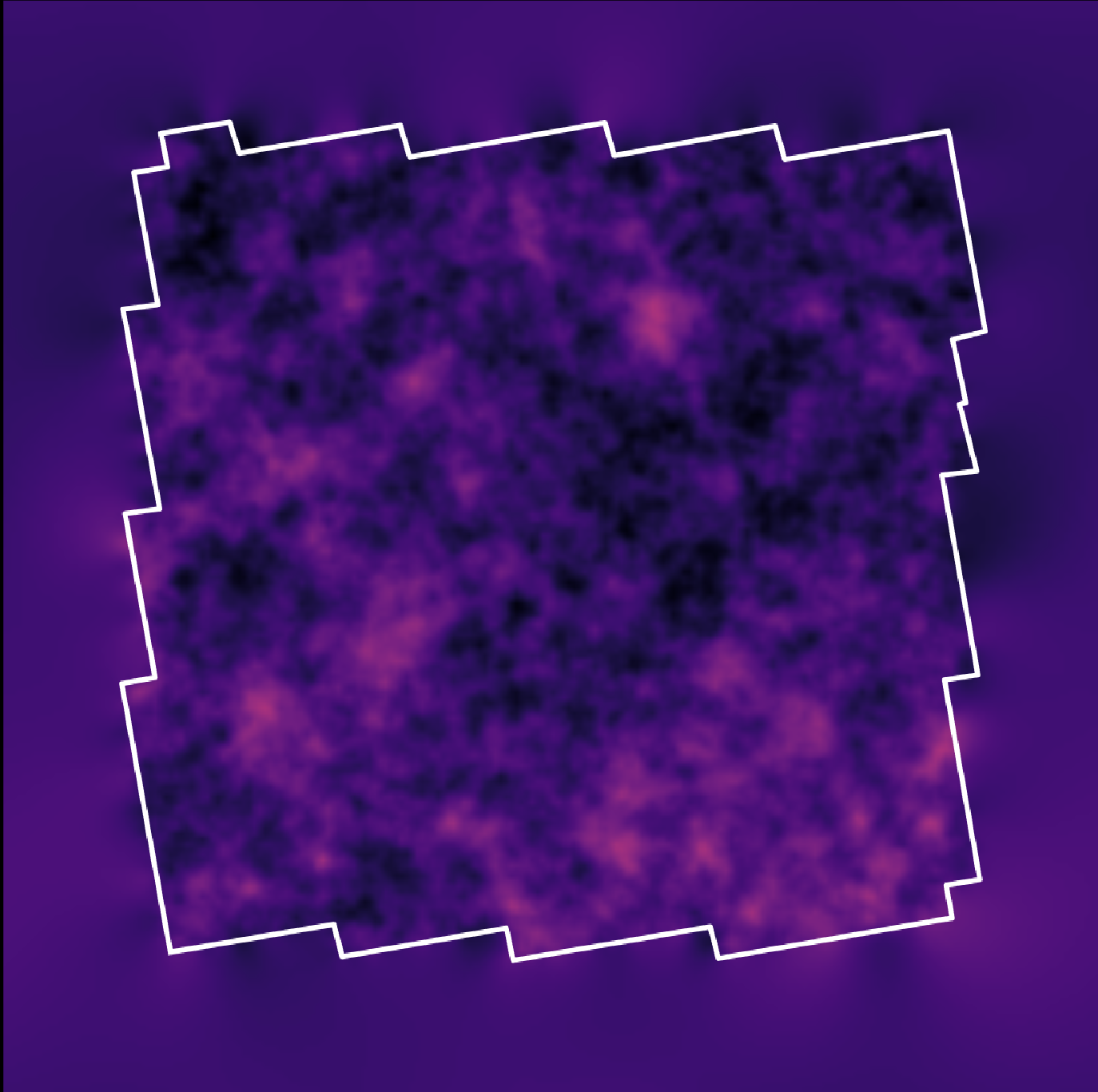

Wiener Filter

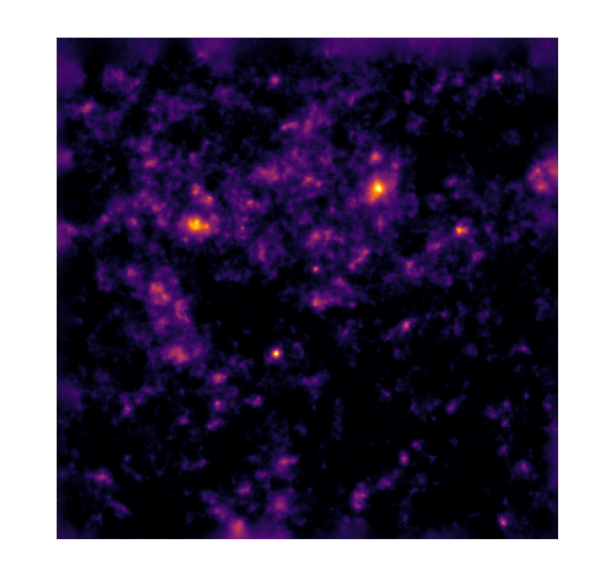

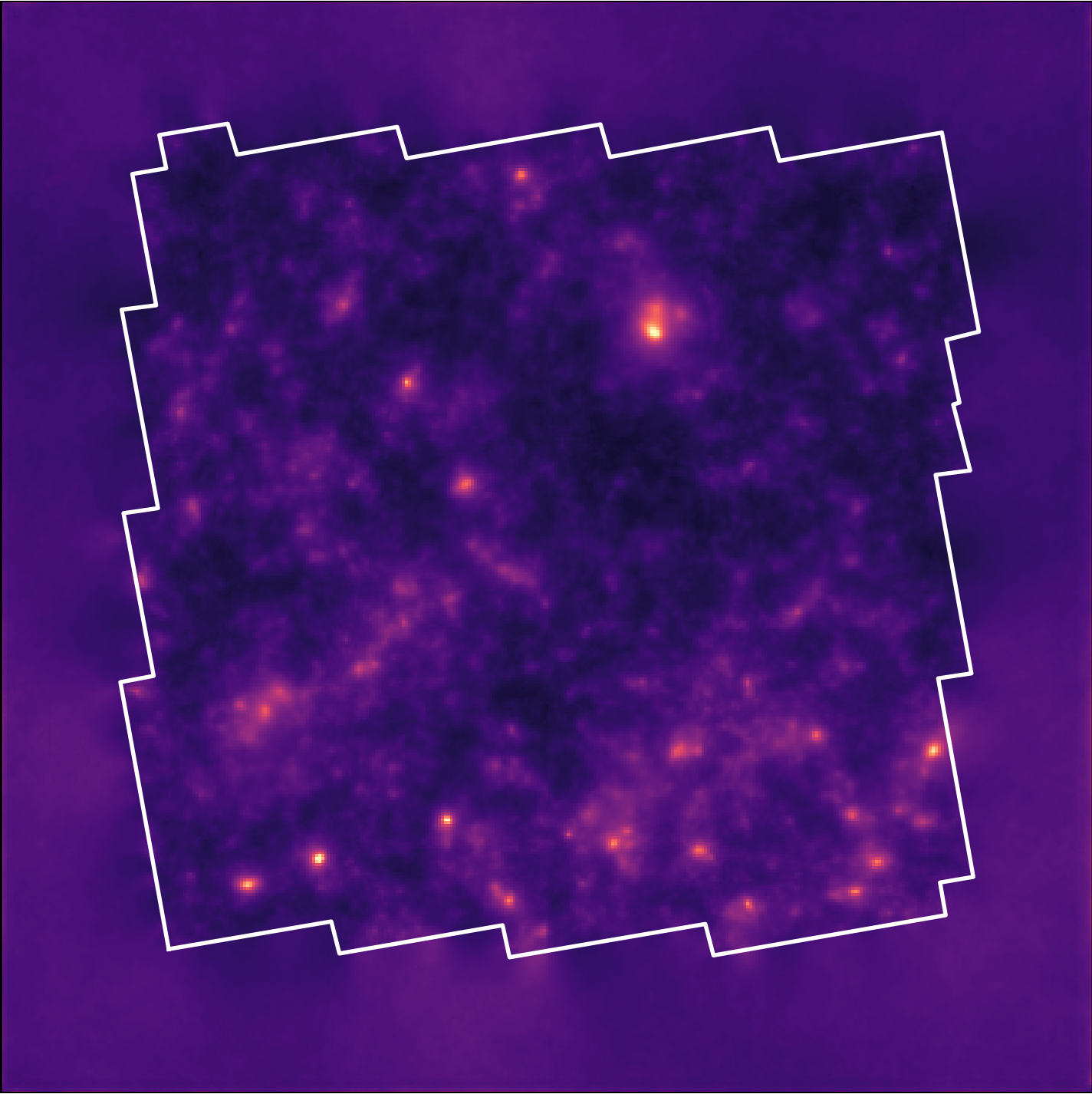

Posterior Mean (ours)



Posterior samples

Reconstruction of the HST/ACS COSMOS field

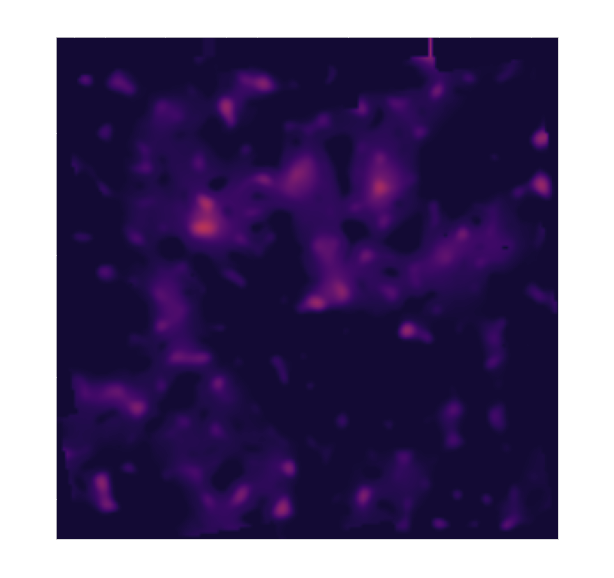

Massey et al. (2007)
Remy et al. (2022) Posterior mean

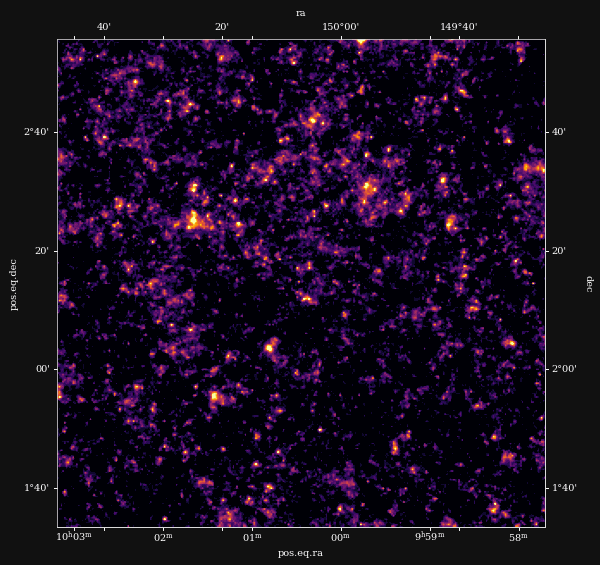

Remy et al. (2022) Posterior samples

Uncertainty quantification in Magnetic Resonance Imaging (MRI)

Ramzi, Remy, Lanusse et al. 2020


$$\boxed{y = \mathbf{M} \mathbf{F} x + n}$$



$\Longrightarrow$ We can see which parts of the image are well constrained by data, and which regions are uncertain.

Takeaways and Challenges

  • Generative models turn implicit distributions into explicit distributions $p_\theta(x)$ that can be plugged into broader frameworks.

  • Why solve inverse problems explicitly?
    • Robustness: Enforce data-fidelity through the likelihood.
    • Flexibility: Likelihood can be changed at inference time, no need to retrain.
    • Interpretability: Confine the neural network to modeling a specific component of the model with physical meaning.

  • Technology exists to solve these problems at scale!


Open challenges
  • Fast, scalable, calibrated sampling from products of learned and explicit distributions.
    $\Longrightarrow$ Sampling posteriors by diffusion needs access to annealed posterior score.

  • Methodologies to test posterior calibration in high dimensions.
    $\Longrightarrow$ See Laurence's talk for the solution to this problem :-)

  • How to build priors from noisy, heterogeneous, and/or incomplete data?
    $\Longrightarrow$ If prior data is observational, how to deconvolve the prior from observing conditions.

Inference over hybrid physical/data-driven models


Complications specific to astronomical images: spot the differences!


CelebA

HSC PDR-2 wide

  • There is noise
  • We have a Point Spread Function (instrumental response)

A Physicist's approach: let's build a model

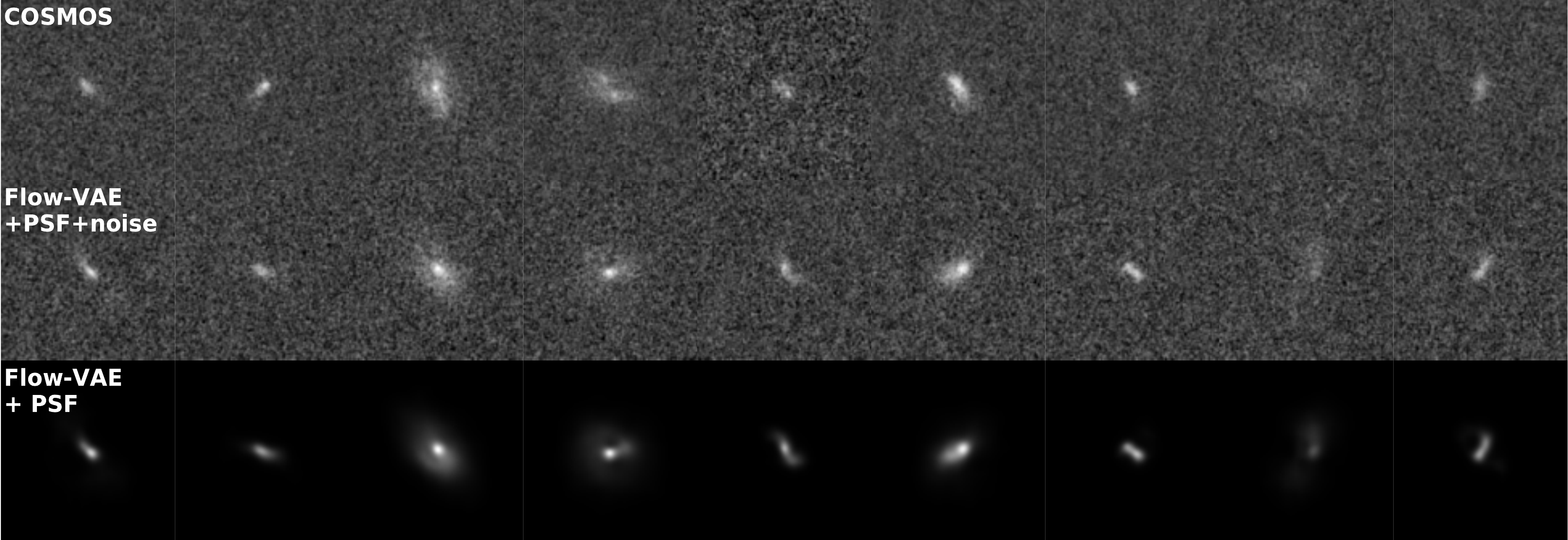

Lanusse et al. (2020)
$\longrightarrow$
$g_\theta$
$\longrightarrow$

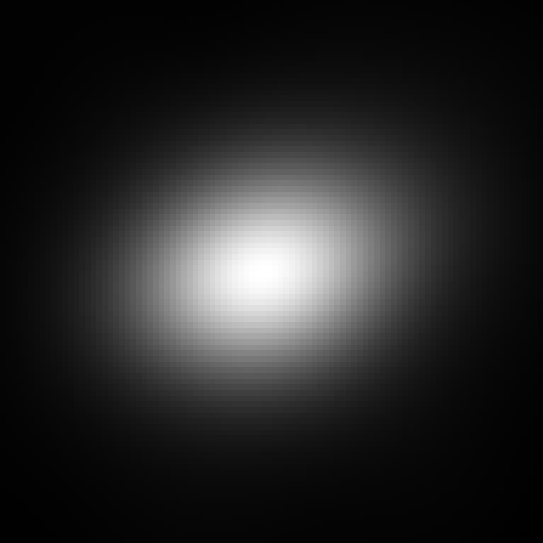

PSF
$\longrightarrow$

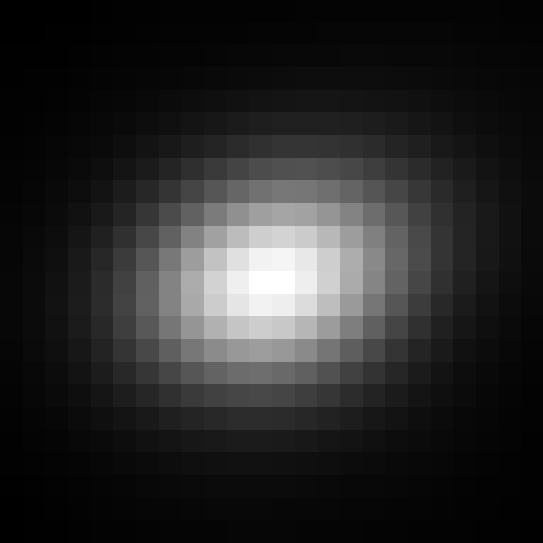

Pixelation
$\longrightarrow$
Noise

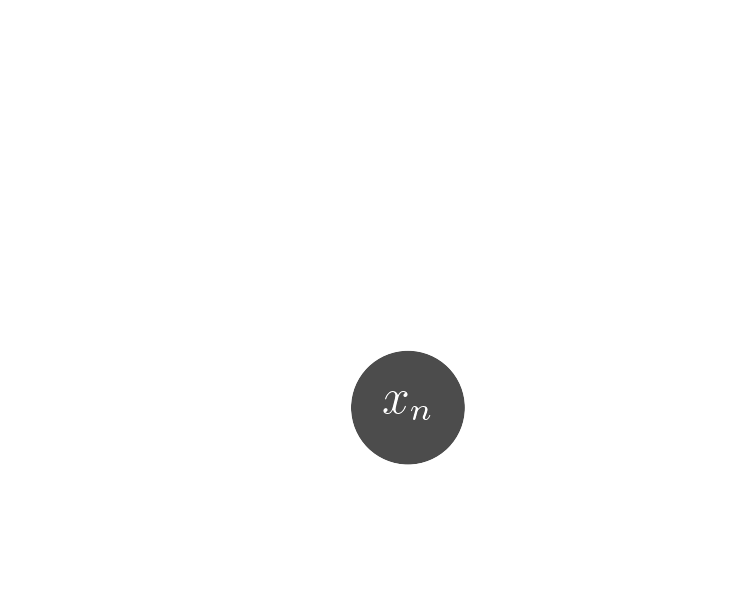

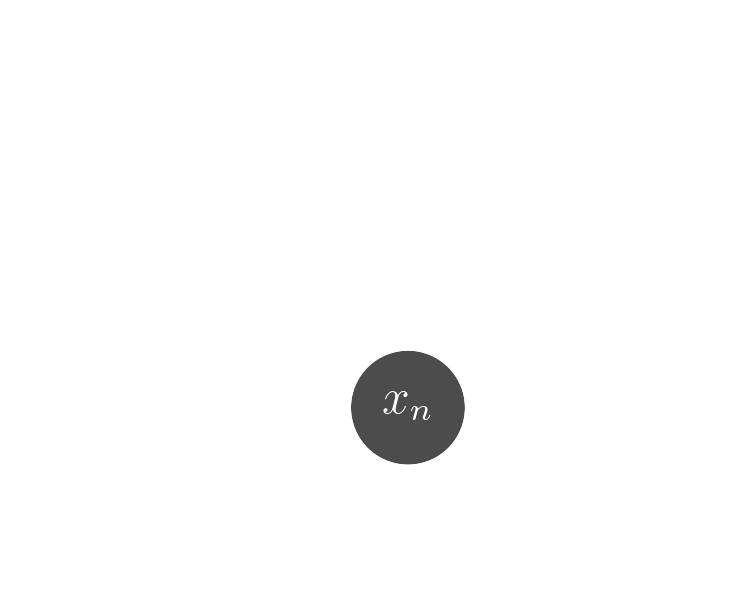

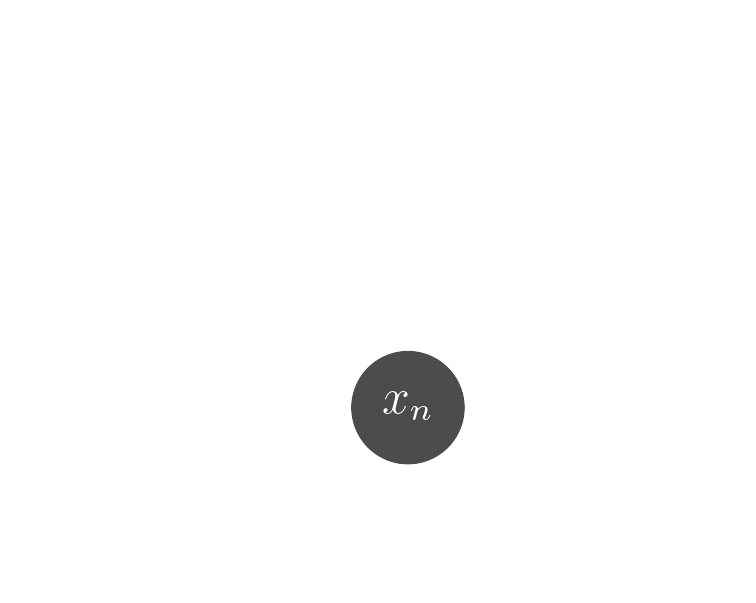

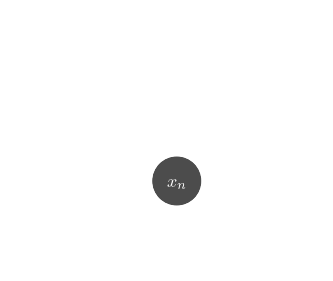

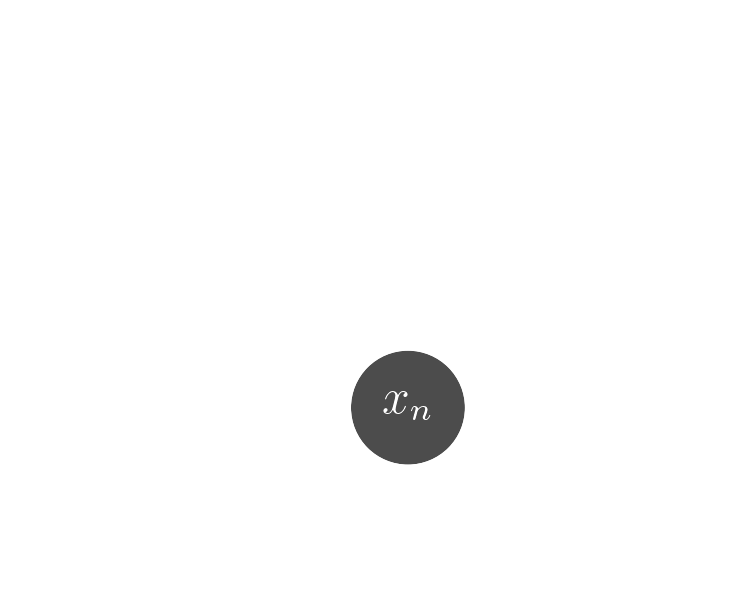

Probabilistic model
$$ x \sim ? $$
$$ x \sim \mathcal{N}(z, \Sigma) \quad z \sim ? $$
latent $z$ is a denoised galaxy image
$$ x \sim \mathcal{N}( \mathbf{P} z, \Sigma) \quad z \sim ?$$
latent $z$ is a super-resolved and denoised galaxy image
$$ x \sim \mathcal{N}( \mathbf{P} (\Pi \ast z), \Sigma) \quad z \sim ? $$
latent $z$ is a deconvolved, super-resolved, and denoised galaxy image
$$ x \sim \mathcal{N}( \mathbf{P} (\Pi \ast g_\theta(z)), \Sigma) \quad z \sim \mathcal{N}(0, \mathbf{I}) $$
latent $z$ is a Gaussian sample
$\theta$ are parameters of the model



$\Longrightarrow$ Decouples the morphology model from the observing conditions.

Bayesian Inference a.k.a. Uncertainty Quantification

The Bayesian view of the problem: $$ p(z | x ) \propto p_\theta(x | z, \Sigma, \mathbf{\Pi}) p(z)$$ where:
  • $p( z | x )$ is the posterior
  • $p( x | z )$ is the data likelihood, contains the physics
  • $p( z )$ is the prior
Data
$x_n$
Truth
$x_0$

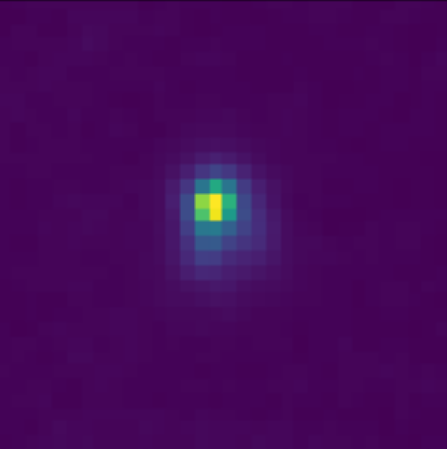

Posterior samples
$g_\theta(z)$

$\mathbf{P} (\Pi \ast g_\theta(z))$
Median
Data residuals
$x_n - \mathbf{P} (\Pi \ast g_\theta(z))$

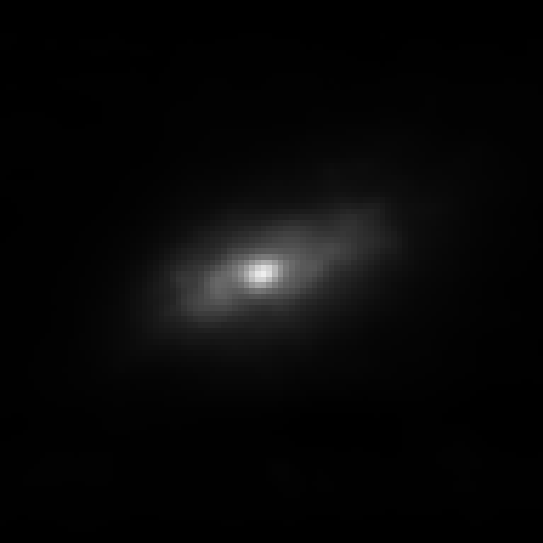

Standard Deviation
$\Longrightarrow$ Uncertainties are fully captured by the posterior.

How to train your dragon model

  • Training the generative amounts to finding $\theta_\star$ that maximizes the marginal likelihood of the model: $$p_\theta(x | \Sigma, \Pi) = \int \mathcal{N}( \Pi \ast g_\theta(z), \Sigma) \ p(z) \ dz$$
    $\Longrightarrow$ This is generally intractable

  • Efficient training of parameter $\theta$ is made possible by Amortized Variational Inference.
Auto-Encoding Variational Bayes (Kingma & Welling, 2014)
  • We introduce a parametric distribution $q_\phi(z | x, \Pi, \Sigma)$ which aims to model the posterior $p_{\theta}(z | x, \Pi, \Sigma)$.

  • Working out the KL divergence between these two distributions leads to: $$\log p_\theta(x | \Sigma, \Pi) \quad \geq \quad - \mathbb{D}_{KL}\left( q_\phi(z | x, \Sigma, \Pi) \parallel p(z) \right) \quad + \quad \mathbb{E}_{z \sim q_{\phi}(. | x, \Sigma, \Pi)} \left[ \log p_\theta(x | z, \Sigma, \Pi) \right]$$ $\Longrightarrow$ This is the Evidence Lower-Bound, which is differentiable with respect to $\theta$ and $\phi$.

The famous Variational Auto-Encoder



$$\log p_\theta(x| \Sigma, \Pi ) \geq - \underbrace{\mathbb{D}_{KL}\left( q_\phi(z | x, \Sigma, \Pi) \parallel p(z) \right)}_{\mbox{code regularization}} + \underbrace{\mathbb{E}_{z \sim q_{\phi}(. | x, \Sigma, \Pi)} \left[ \log p_\theta(x | z, \Sigma, \Pi) \right]}_{\mbox{reconstruction error}} $$

Flow-VAE samples



Variational Inference over Hybrid Hierarchical Bayesian Models


Work led by Benjamin Remy


$\Longrightarrow$ Eliminate model bias in shear inference by using data-driven morphology priors.

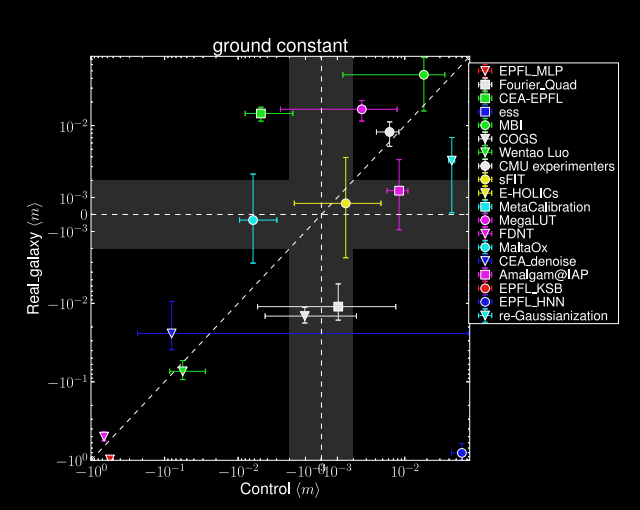

Impact of galaxy morphology on shape measurement


Mandelbaum, et al. (2013), Mandelbaum, et al. (2014)

Let's again think as physicists

$\longrightarrow$
$g_\theta$
$\longrightarrow$
shear $\gamma$
$\longrightarrow$
PSF
$\longrightarrow$
Noise
Probabilistic model
$$ x \sim \mathcal{N}(\Pi \ast (g_\theta(z) \otimes \gamma), \Sigma) \quad z \sim \mathcal{N}(0, \mathbf{I}) $$
latent $z$ are morphological parameters
$\theta$ are global parameters of the model
$\gamma$ are shear parameters



$\Longrightarrow$ We have a hybrid probabilistic model, with the known physics of lensing and of the instrument, and learned morphology model.

Joint inference using a parametric model for the morphology

Let's assume that $g(z)$ is a sersic model, i.e. $z = \{n, r_\text{hlr}, F, e_1, e_2, s_x, s_y\}$ and $$g(z) = F \times I_0 \exp \left( -b_n \left[\left( \frac{r}{r_\text{hlr}}\right)^{\frac{1}{n}} -1\right] \right)$$
The joint inference of $p(z, \gamma | \mathcal{D})$ leads to a biased posterior...

Marginal shear posterior $p(\gamma|\mathcal{D})$

Maximum a posteriori fit and residuals

We need a more realistic model of galaxy morphology

Joint inference using a generative model for the morpholgy

Remy, Lanusse, Starck (2022)
Let's use a learned $g_\theta(z)$

The joint inference of $p(z, \gamma | \mathcal{D})$ leads to an unbiased posterior!


Marginal shear posterior $p(\gamma|\mathcal{D})$

Maximum a posteriori fit and residuals

Hybrid Physical-Neural ODEs for N-body Simulations


Work in collaboration with:
Denise Lanzieri


$\Longrightarrow$ Learn residuals to known physical equations to improve accuracy of fast PM simulations.

Full-Field Simulation-Based Inference

  • Instead of trying to analytically evaluate the likelihood of sub-optimal summary statistics, let us build a forward model of the full observables.
    $\Longrightarrow$ The simulator becomes the physical model.

  • Each component of the model is now tractable, but at the cost of a large number of latent variables.


Benefits of a forward modeling approach
  • Fully exploits the information content of the data (aka "full field inference").

  • Easy to incorporate systematic effects.

  • Easy to combine multiple cosmological probes by joint simulations.
(Porqueres et al. 2021)


How to perform inference over forward simulation models?

  • Implicit Inference: Treat the simulator as a black-box with only the ability to sample from the joint distribution $$(x, \theta) \sim p(x, \theta)$$ a.k.a.
    • Simulation-Based Inference (SBI)
    • Likelihood-free inference (LFI)
    • Approximate Bayesian Computation (ABC)

  • Explicit Inference: Treat the simulator as a probabilistic model and perform inference over the joint posterior $$p(\theta, z | x) \propto p(x | z, \theta) p(z, \theta) p(\theta) $$ a.k.a.
    • Bayesian Hierarchical Modeling (BHM)

$\Longrightarrow$ For a given simulation model, both methods should converge to the same posterior!

The real concern: how accurate are our simulation models?

Chisari et al. (2018)

Ratio of power spectrum in hydrodynamical simulations vs. N-body simulations
Secco et al. (2021)

DES Y3 Cosmic Shear data vector

$\Longrightarrow$ Can we find ways to let data constrain our uncertain models ?

Forward Models in Cosmology

Linear Field
Final Dark Matter

Dark Matter Halos
Galaxies
$\longrightarrow$
N-body simulations
$\longrightarrow$
Group Finding
algorithms
$\longrightarrow$
Semi-analytic &
distribution models

introducing FlowPM: Particle-Mesh Simulations in TensorFlow

Modi, Lanusse, Seljak (2020)

																  import tensorflow as tf
																  import flowpm
																  # Defines integration steps
																  stages = np.linspace(0.1, 1.0, 10, endpoint=True)

																  initial_conds = flowpm.linear_field(32,       # size of the cube
																									 100,       # Physical size
																									 ipklin,    # Initial powerspectrum
																									 batch_size=16)

																  # Sample particles and displace them by LPT
																  state = flowpm.lpt_init(initial_conds, a0=0.1)

																  # Evolve particles down to z=0
																  final_state = flowpm.nbody(state, stages, 32)

																  # Retrieve final density field
																  final_field = flowpm.cic_paint(tf.zeros_like(initial_conditions),
																								 final_state[0])

  • Seamless interfacing with deep learning components









Mesh FlowPM: distributed, GPU-accelerated, and automatically differentiable simulations

  • We developed a Mesh TensorFlow implementation that can scale on GPU clusters (horovod+NCCL).

  • For a $2048^3$ simulation:
    • Distributed on 256 NVIDIA V100 GPUs

  • Don't hesitate to reach out if you have a use case for model parallelism!


  • Now developing the next generation of these tools in JAX
    • pmwd Differentiable PM library, (Li et al. 2022) arXiv:2211.09958
    • jaxdecomp: Domain Decomposition and Parallel FFTs

PM simulations are only fast approximations

Camels simulations

PM simulations

Hybrid physical/neural differential equations

Lanzieri, Lanusse, Starck (2022)
$$\left\{ \begin{array}{ll} \frac{d \color{#6699CC}{\mathbf{x}} }{d a} & = \frac{1}{a^3 E(a)} \color{#6699CC}{\mathbf{v}} \\ \frac{d \color{#6699CC}{\mathbf{v}}}{d a} & = \frac{1}{a^2 E(a)} F_\theta( \color{#6699CC}{\mathbf{x}} , a), \\ F_\theta( \color{#6699CC}{\mathbf{x}}, a) &= \frac{3 \Omega_m}{2} \nabla \left[ \color{#669900}{\phi_{PM}} (\color{#6699CC}{\mathbf{x}}) \right] \end{array} \right. $$
  • $\mathbf{x}$ and $\mathbf{v}$ define the position and the velocity of the particles
  • $\phi_{PM}$ is the gravitational potential in the mesh

$\to$ We can use this parametrisation to complement the physical ODE with neural networks.


$$F_\theta(\mathbf{x}, a) = \frac{3 \Omega_m}{2} \nabla \left[ \phi_{PM} (\mathbf{x}) \ast \mathcal{F}^{-1} (1 + \color{#996699}{f_\theta(a,|\mathbf{k}|)}) \right] $$


Correction integrated as a Fourier-based isotropic filter $f_{\theta}$ $\to$ incorporates translation and rotation symmetries

Projections of final density field



Camels simulations
PM simulations
PM+NN correction

Results


  • Neural network trained using single CAMELS simulation of $25^3$ ($h^{-1}$ Mpc)$^3$ volume and $64^3$ dark matter particles at the fiducial cosmology of $\Omega_m = 0.3$


  • Towards Hybrid Cosmological Simulation Models

    • In addition to latent variables $z$ of the simulator, the simulator can now also be seen as parametric generative model $p(x | z, \phi, \theta)$ with $\phi$ parameters of a neural network.

    • Jointly constrain physical parameters $\theta$ and neural network parameters $\phi$ from data is possible for instance by Variational Inference.

    • Necessitates access to gradients of the likelihood, from cosmology to data. $$\frac{d \log p(x | z, \theta, \phi)}{d \theta} \quad ; \quad \frac{d \log p(x | z, \theta)}{d z} \quad ; \quad \frac{d \log p(x | z, \theta, \phi)}{d \phi} $$

    Takeaways and Challenges


    • Generative models can be integrated within a Hierarchical Bayesian model to learn part of the physical model from data.
      • Solution to deconvolve distribution

      • Strategy to address model mispecification issues



    Open challenges
    • Fitting latent generative models is possible by variational inference, but VI typically does not reach high quality models.

    • Performing explicit inference over high dimensional probablistic models.
      $\Longrightarrow$ VI is difficult in high-d, HMC is not efficient.

    Conclusion

    Conclusion

    Merging Deep Learning with Physical Models for Bayesian Inference
    $\Longrightarrow$ Makes Bayesian inference possible at scale and with non-trivial models!

    • Enables inference in high dimension from numerical simulators.
      • By turning implicit physical models into usable explicit distributions.

    • Complement known physical models with data-driven components
      • Use data-driven generative model as prior for solving inverse problems.




    Thank you !
